Die Casting Aluminum Cabinet HD LED Display

Die Casting Aluminum Cabinet HD LED Display

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB, CFR, CIF, FCA, CPT

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 30 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Guangzhou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	6000m²/Month
Supply Ability:	6000m²/Month
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,FCA,CPT
Certificate:	CCC FCC ETL CE EMC RoHS
HS Code:	8528591090
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Guangzhou

Product Description

Features

1) Support all kinds of videos, graphics, pictures, files, text, and other forms of play.

2) Though using high brightness LED under low power consumption,done energy saving.

3) Synchronous asynchronous systems meet diverse needs.

4) Module and cabinets size of freely assembly.

5) With a fine pixel pitch of 1.56 mm, High contrast and high image quality.

6)4.6 kg of ultra-thin panel, save transportation and installation costs.

7)Wide viewing angle and longer viewing distance for more audiences.

8)Wide color range, excellent color uniformity, broadcasting strong stability.

Details

Model	IU-1.5
Pixel Pitch	1.56mm
Pixel Density	409,600px/m²
LED Type	SMD1010
LED Configuration	1R1G1B
Cabinet Dimension	400*300
Cabinet Resolution	192*128
Cabinet Weight	4.6kg/panel
Cabinet Material	die-casting
Ingress Protection(front/rear)	IP30
Brightness	>800nits
Contrast ratio	4000:1
Colours	281 trillion
Viewing Angle(H/V)	140°/140°
Driving Method	1/32 Scan
Power Consumption(avg.)	220w/m²
Power Consumption(max.)	800w/m²
Frame Refresh	≥ 60Hz
Data Refresh Rate	≥ 1500Hz
Gray Scale	16bit
Power Supply	AC 110/220±10% 50~60Hz
Temperature (operating/storage)	-20~50°C -40~60°C
Humidity(operating/storage)	10%~90%RH 10%~85%RH
MTBF	≥1000 Hours
Life Span	≥50000 Hours
Service	Front/Rear
Certification	CCC,TUV-CE,ETL

Images

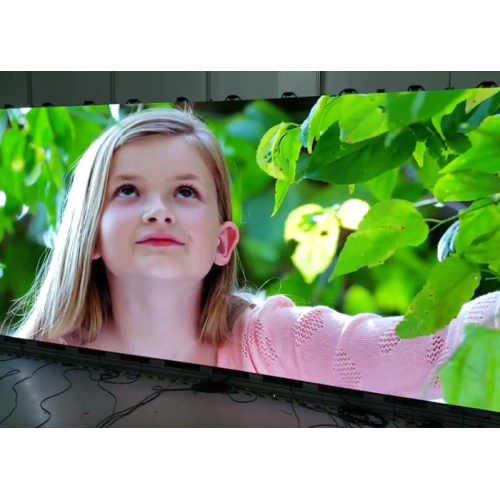

front service led cabinet indoor led screen low power consumption

Advantages
1. Customized: We can manufacture it in any size and any pixel pitches by your require.

2. Muti-control system: Both synchronous and asynchronous control way is available for LED Display.

3. Cabinet: Through die-casting aluminum cabinet material, which contains lighter weighs and excellent thermal management.

4. Maintain: Support front and rear maintenance.

5. High Gray Scale : Even in the condition of indoor lower brightness, it still maintain a high gray scale, which keep the screen color delicate.

6. Clear Image: Whether far from or close view distance as well as any angle, the image of LED Display is maintain a high definition.

Trade Terms
1. Package: Wooden package, Flight case
