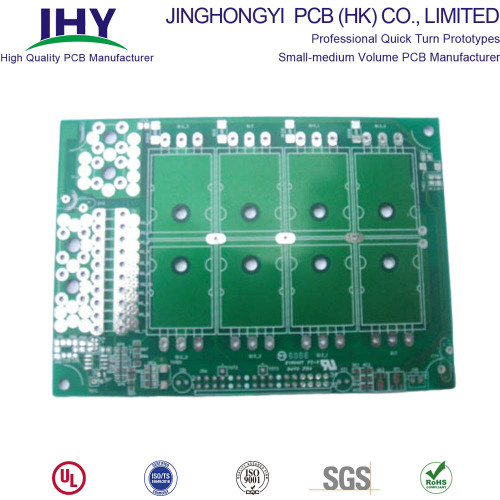

Lead-Free HASL Single Sided PCB

Get Latest Price

Payment Type:: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Incoterm:: FOB, CFR, CIF, EXW, FCA, CPT, CIP

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	10000
Payment Type:	L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:	FOB,CFR,CIF,EXW,FCA,CPT,CIP
Certificate:	ISO9001
Transportation:	Ocean,Air

Product Description

Keywords：Single Sided HASL PCB, Lead-Free HASL Single Sided PCB, FR1 Single Sided PCB, Single Sided PCB 94vo

With Nearly 10 years of PCB manufacturing experience, JingHongYi PCB (HK) Co., Limited is rapidly becoming the logical choice for PCB manufacturers in Shenzhen, China. We're proud to manufacture high-quality products. We can handle production orders on 1 layers all the up to 24 layers(single sided PCB, double sided PCB, multilayer PCB, rigid PCB, flexible PCB, high-frequency PCB, etc.). and we have quick turn PCB prototype, Small volume and large volume service type PCB assembly services without MOQ.

Type of Surface Finish

HASL, lead free HASL, ENIG, Flash gold, Thick gold, Selective gold plating, OSP, Selective OSP /HASL, Immersion Tin, Immersion Silver, Immersion Gold.
We provide HASL, lead-free HASL single-sided PCB, double-sided PCB, multilayer PCB and other kinds of PCB manufacturing services. HASL, hot air solder level, is a manufacturing process in which PCB is immersed in molten solder, and then excess solder on the surface and in the hole is blown off by strong hot air to obtain a bright coating. One is to use a lead-tin alloy. The temperature of the furnace with lead spraying tin is about 240 degrees. The other is to use pure tin. Because lead is harmful to the human body, many European countries prohibit the use of lead-tin, so it is popular to use pure tin or lead-free spraying tin. The temperature of the lead-free furnace is as high as 300 ℃, and the operating environment is high temperature and high corrosion, which is very harmful to PCB, and the surface flatness is far less than that of chemical treatment.

Base Material

CEM1, CEM3, Middle-Tg FR4, High-Tg FR4, Halogen free, BT / Rogers / PTFE, Aluminum base material

Special Technology: Impendence Control, Differencial PCB printed circuit board, Peelabemask PCB , High Density PCB HDI, Heavy copper PCB ,Metal Core circuit boards ,Copper Clad PCB printed circuit board, Blind & Buried Vias, Laser Drilled Vias, Burn-in Boards,Flex Boards, Rigid Flex PCB printed circuit board , Edge half plated thru hole Circuit boards, Selective Plating Hard Gold, Special Thin or Special Thick PCB board, PCB with Resin Plugged Hole.

Why Choose us？

No MOQ, low cost for small quantity prototype. We penalize prototype circuit boards on a big panel which will share set-up costs with other customers, which could save a lot of PCB tooling cost for small quantity PCB prototype. PCB manufacturing on spec. We have professional engineering in each production process from evaluating cost, checking and assessing Gerber requirement, making MI to production and final inspection to guarantee circuit board quality. Meeting your printed circuit board needs from PCB prototyping to mid-volume production ISO/TS certified PCB manufacturing factory. Deliver on time. We keep higher than 99% on-time-delivery rate Combined service to arrange your PCB to you by DDU TO DOOR shipment with competitive shipping cost. You don't need to arrange anything after confirming the order just wait for your PCB deliver to your hand. Offer free DRC for DFM to our customers. Decades of experience in supporting manufacturing PCB requirements from a wide range of industries.

Minimum Order Quantity: 1pcs
Price: The price will change with different process and quantity
Packaging Details: box
Delivery Time: quick turn and normal type
Payment Terms: TT, LC, and others base on negotiation
Supply Ability: 1, 000, 000PCS/week

Single Sided PCB Definition

Single Sided PCBs, also called Single Layer PCB, contain only one layer of conductive material and are best suited for low density designs. Single sided PCB'S have been around since the late 1950s and still dominate the world market in sheer piece volume. Single-sided printed circuit boards are easily designed and quickly manufactured. They serve as the most cost effective platform in the industry.

There are many similarities and differences between single sided PCB and double sided PCB, and we will also explain them here.

Single Sided PCB Manufacturing

One thin layer of thermally conductive but electrically insulating dielectric is laminated with copper. Soldermask is usually applied on top of the copper.

single sided pcb layout | JHYPCB

JingHongYi PCB (HK) Co., Limited is a professional Single Layer PCB manufacturer from China. We have a very efficient and complete production process. To learn more about our PCB production process, click here: PCB manufacturing flow chart.

JHY PCB produces prototype, midrange and high volume Single Sided circuit boards, with a copper thickness from 1 to 20 ounces. Operating temperatures range from 130 C to 230 C. Single sided boards are available with surface finishes including Organic Surface Protectant (OSP), Immersion Silver, Tin, and Gold plating along with both leaded or lead-free Hot Air Solder Level (HASL).

Construction of Single Sided PCB

Construction of Single Sided PCB | JHYPCB

The base material, which is also named as substrate, is composed of insulating fiber glass which gives PCB strength and compact look. The nature and type of base material defines if board is going to be Flexible PCB or Rigid PCB.

Above substrate, there lies a copper layer which provides conducting path for various components on the board. The copper thickness is different for different boards depending on your needs and requirements and is defined in ounces per square foot.

On the top of copper foil, there exists a solder mask layer. This layer is mainly used for protection and makes the copper foil insulating which helps in avoiding the conduction in case direct contact happens with some conducting material.

On the top of all layers, there exists a silkscreen layer that is mainly used for adding symbols and characters on the board so a common person can anticipate the clear understanding of the board.
