Laser Cut Printed Circuit Board SMT Stencils

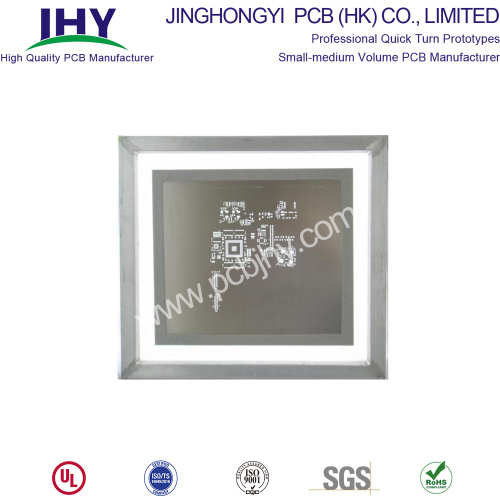

Laser Cut SMT Stencils

Stencils, also called SMT stencils, play a key role in transferring accurate amount of solder paste to correct positions on bare circuit boards ready for assembly. In other words, stencils can fast and efficiently ensure the most accurate solder paste amount and optimal electrical connection. With solder stencils, it is possible to use metal squeegee blades to apply solder paste easily over the openings on PCBs and make stencil to be well aligned with the surface of the advanced circuit board.

According to SMT stencil manufacturing technologies, we provide two types of stencils: laser-cut stencils and chemical-etch stencils.

Laser-cut stencils

The openings are lasered on 100% stainless steel. Generally speaking, this kind of stencil can be produced with high quality and a high degree of precision within a short time.

• Advantages: high accuracy; barely influenced by objective elements; trapezoid opening beneficial for demoulding; suitable for accurate cutting; reasonable price;
• Disadvantages: relative low manufacturing speed.
