Electroformed PCB Assembly SMT Stencils

Electroformed SMT Stencils

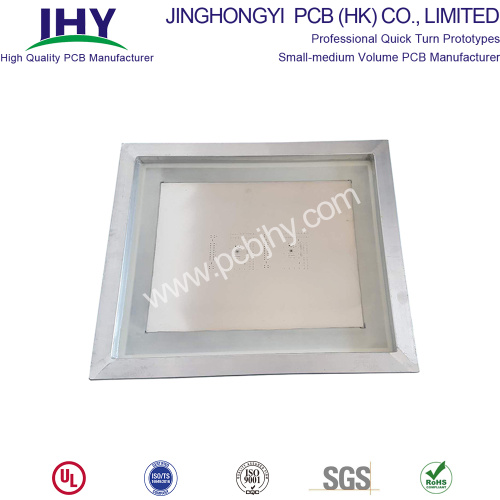

Electroformed SMT stencils are nickel-based, electroform foils permanently mounted in a stencil frame using a mesh border to tightly stretch the stencil foil taut in the frame. Electroformed stencils offer the best paste release characteristics available and are frequently used for fine pitch (20 mil to 12 mil pitch) SMT applications on printed circuit boards. They are also used for µBGA's, Flip Chip, and Wafer Bumping (12 mil to 6 mil pitch).

PCB Stencil Production

Electroformed SMT Stencil Features:

• The smooth trapezoidal sidewalls of an electroformed stencil allow for better paste release
• Nickel has a lower coefficient of friction compared to stainless steel
• Electroform foils are harder than full hard stainless steel of comparable thickness, providing for longer stencil life
• 24-hour turnaround standard
