Star Metal Core PCB LED

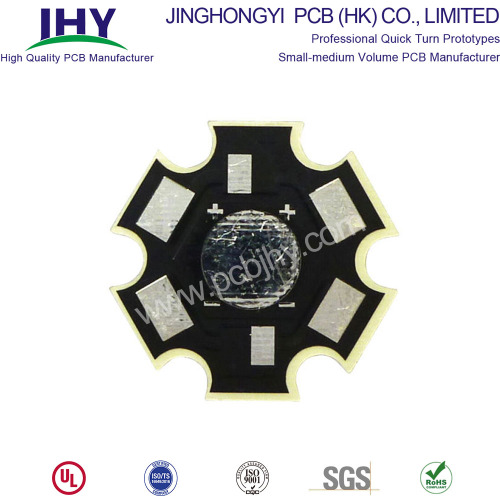

STAR Metal Core PCB

This STAR Metal Core PCB (MCPCB) is manufactured by JHY PCB, a professional PCB manufacturer. This printed circuit board with Aluminum base has been developped for LED industry .

The Insulated Metal Substrate allows you to quickly create your prototypes of LED modules based on kinds of LED at reasonable price. With it's high thermal conductivity of 2 W/mK , this printed circuit board is able to drain the heat of the LED components to he Aluminum base, which is ideal for LED lighting. This Metal Core PCB is manufactured with UL certified Aluminum substrates.

Images for star metal core PCB

LED Metal Core PCB

Our Metal Core Printed Circuit Boards are LED specific. All the boards on LED Mounting Bases are exclusive.

We have manufactured these boards for you in order to let you prototype easily, quickly and at reasonable price your LED modules.

Our LED IMS (Insulated Metal Substrate) can be used in several cases like indoor or outdoor luminaries, backlighting, biological lighting and you can integrate them directly in your products.

The large range of Metal Core PCBs we offer allows you to mount almost all the LEDs on the market and they can fit in a large majority of mechanical constraints.

All our boards are manufactured from UL certified substrates.

High power light-emitting diodes (LED)


can use 350 milliamps or more in a single LED. Most of the electricity in an LED becomes heat rather than light (about 70% heat and 30% light). If this heat is not removed, the LEDs run at high temperatures, which not only lowers their efficiency, but also makes the LED less reliable. Thus, thermal management of high power LEDs is a crucial area of research and development. It is necessary to limit the junction temperature to a value that will guarantee the desired LED lifetime.

Star Metal Core Printed Circuit Board (Star MCPCB)

are boards with 20 mm dimension of 6-sided polygon witch incorporate a base metal material as heat spreader as an integral part of the circuit board. The metal core usually consists of aluminum alloy. Furthermore MCPCB can take advantage of incorporating a dielectric polymer layer with high thermal conductivity for lower thermal resistance.

Metal Core PCB Prototyping manufacturer

Manufacturer of Quick Turn PCB, Metal Core PCB Prototyping, Aluminum PCB.

JHY PCB is an UL, TS16949, ISO-9001, and RoHS Printed Circuit Board Manufacturer in Guangdong, China. We specialize in providing Quick Turn PCB, Metal Core PCB Prototyping.

As a China PCB manufacturer, we are specializing in PCB Manufacturing, PCB assembly and associated Printed Circuit Board (PCB) services. JHY PCB provides quick turn PCB assembly services for Printed Circuit Boards Prototype and low volume productions. We aim to exceed each customer's expectations by providing exceptional Printed Circuit Boards Assembly and services while maximizing customer profits through sensitivity to cost of goods and elimination of field claims.

JHY PCB has experienced engineers, strict QC and advanced equipment are the reason that we as manufacturers of Metal Core PCB Prototyping are able to make outstanding products with competitive prices; and we offer prompt delivery too. Further more our flexible production system enable us produce both large and small quantity Metal core PCBs.

JHY PCB is a Printed Circuit Board manufacturer producing high quality, low cost barebones PCB's and Prototype Printed Circuit Boards. JHY PCB manufactures PCB prototypes – Prototype Printed Circuit Boards. JHY PCB serves the PCB printed circuit board industry. We meet your PCB Prototyping and fabrication needs with 24-hour turnarounds and with the highest quality printed circuit boards.

Metal Core PCB manufacturing service - High Quality at a Lower Cost

JHY PCB Metal Core PCB manufacturing capability for you in getting you the lowest cost PCBs!

As a China professional PCB manufacturer we can provide our customers with the best PCB prices in the industry. Whether you are looking for an PCB manufacturer to handle your high volumes at the best possible prices; or you have some high technology boards requirements that you want the best deal on we can make it happen; low cost PCBs with high quality customer service.

When it comes to finding the very best prices on the market, let JHY PCB been the low cost PCB fabricator that's right for you. A cheap PCB fabrication is not our goal; inexpensive high quality ones are!

Tell our experts what you need and we will provide you with the right PCB fabrication and assembly solution. We are ready and eager to turn your concepts into reality.

Metal Core PCB Construction

Aluminum base CCL(copper clad laminate) is a kind of raw material of metal PCB, which is consist of copper foil, thermal insulation layer and metal substrate, its structure in three layers:

Circuit Layer: equivalent to ordinary PCB copper clad laminate, thickness of copper foil from loz to 10 oz.

Dielectric Layer: dielectric Layer is a kind of material with thermal insulation and low thermal resistance. thickness from 0.003 "to 0.006" which is the core technology of the aluminum base copper clad laminate. It has achieved the UL certification.

Base Layer: Base layer is metal core, normally it is aluminum base or copper base.

Types of MCPCB (Metal core PCB)

Metal core PCB are sorted according to the location of the metal core and the trace layers of the PCB.

There are 5 main types of metal core PCB and these are:

-Single Layer MCPCB (one trace layer on one side),
-COB LED PCB (one trace layer),
-Double Layers MCPCB (two trace layers on one side),
-Double Sided MCPCB (two trace layers on both sides) and
-Multi Layers MCPCB (More than two trace layers on every board).

Metal Core PCB Material

Aluminum is commonly used due to its MCPCB thermal conductivity and A lower mcpcb thermal resistance.

This is because the metal core PCBs are able to transfer heat approximately 8 to 9 times faster compared to FR4 PCBs.

The MCPCB laminates disperse heat continuously to keep the components that generate heat cooler thus enhancing their performance and life.

Metal Core PCB Fabrication

Why choose us?

• Save money&time! Achieve peace of mind!
• A professional and trustworthy PCB prototype manufacturer.
• Fastest PCB Prototype.
• One stop solution for various PCB&SMT Stencil.
• Low cost for simple PCB.
• Affordable price for high-tech PCB.
• Minimum orders 1pcs.
• 24-hour online customer service.
• Professional PCB engineer for one-to-one service.
• Shipment on time.
• Guarantee good service and quality from PCB quotation to delivery.

Certification(UL:E466618, TS16949,  ISO9001.RoHS)

PCB Shipment

JHY PCB offers flexible shipping methods for our customers, you may choose from one of the methods below.

Shipping Process
After production and testing, your PCB orders will be sent to our shipping department. As the quick turn PCB manufacturer, JHY PCB shipping department will ship your PCB quickly without any pending.

JHY PCB 's Packing Way

• Use one professional PCB vacuum bag, with desiccant inside. Vacuum compressed totally.
• Paste label and RoHs mark. Use second vacuum bag to protect boards again, vacuum compressed, make sure no exception.
• Microsection report and Tin testing board are put together with PCB in cartons.COC (Certificate of Conformity)  will be sent to customer by email in PDF.
• Several layers of thick EPE(Expand aple poly ephylene) are filled fully in gaps between PCBs and cartons. Thickness of 1 layer EPE is 10mm.
• Neutral Packing is adopted if no special requirements. Strong and thick cartons(Thickness:10mm,7 layers). Different sizes of cartons are designed to meet demand of different PCB size. All package are within weight limit of cartons. For mass production order, no exceed 21kg per carton normally.
• All cartons sealed with strong adhesive tape should be sealed twice so as to make them more durable.
• Solid PP/PET strapping is used outside of cartons.
• Shipping mark, fragile mark and postcode label are all pasted clearly.

How to ship your PCB?

• Firstly, JHY PCB shipping department will print order address and invoice.
• Secondly, JHY PCB will set the shipment information on the Logistics company website.
• Thirdly, the Logistics company staff will collect the package from JHY PCB and ship it to you.
