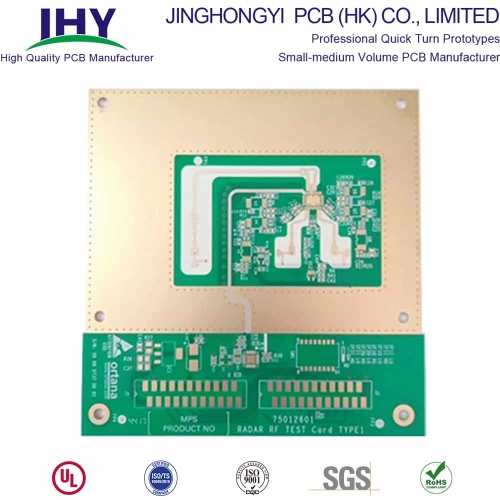

Double Layer Rogers4350 High Frequency PCB

Double Layer Rogers4350 High Frequency PCB

Keyword Tags: Double Layer PCB, High Frequency PCB, Rogers PCB

Product parameters and technical details

• Layers: 2
• Thickness: 0.8 + / - 0.1 mm
• Boards used: Rogers4350
• Dielectric constant: 3.48±0.05
• Dielectric loss factor: 0.0037
• Minimum aperture: 0.3mm
• Surface treatment: Immersion Gold
• Minimum line width/distance: 0.2mm/0.25mm
• Process features: special material, ceramic material filling
• Applications: communication base station, repeater, GPS antenna, power amplifier, signal amplifier, filter, coupler, attenuator, power divider, 3DB bridge, etc

Rogers RO4350B materials allow RF engineers to design circuits efficiently, such as network matching, impedance control of transmission lines, etc. Due to its low dielectric loss, the R04350B material has an advantage over conventional circuit materials in high-frequency applications. Its permittivity fluctuates with the temperature almost the weakest among similar materials, and its permittivity is also relatively stable in a wide frequency range of 3.48, with a design recommendation of 3.66.

High-frequency PCB processing instructions:

1. High-frequency PCB materials commonly used by our company include ROGERS, TACONIC series, high-frequency microwave PTFE and Teflon
2. The commonly used inventory is Rogers 4000 series: RO4350B/RO4003C
3. All HIGH frequency PCB laminates can be mixed with FR4 sheet and PP

I. Rogers high-frequency board materials:

RO4003C, RO4350B, RO4360, RO4533, RO4535, RO4730, RO4232, RO4233, RO3003, RO3006, RO3010, RO3035, RO3203, RO3206, RO3210, RO3730, RO5780, RO5880, RO3202, RO6006

Ii. The material models of Taikangnique TACONIC are as follows:

T.t.5a, T.T.5, T.T.3, HT1.5, TLX-0, TLX-9, TLX-8, TLX-7, TLX-6, TLC-27, TLE-95, RF-35, RF-35A, RF-35P, RF-41, RF-43, RF-45, RF-60A, CER-10

Iii. ARLON HIGH-FREQUENCY PCB materials are as follows:

AD255C03099, AD255C06099, AD255C04099, AD300C03099, AD300C04099, AD300C06009, TC600, AD250C02055C, TC350, MCG300CG, DCL220, CUCLAD, 217LX, CUCLAD 250GX, ARLON 55NT

Iv. Wailing and Taixing HIGH-FREQUENCY PCB materials are as follows:

F4BK225, F4BK265, F4BK300, F4BK350, F4BM220  F4BM255  F4BM265  F4BM300  F4BM350

Rogers PCB Board Material Ceramic HF PCB series Classification:

RO3000 Series: PTFE circuit material based on ceramic filling, models: RO3003, RO3006, RO3010, RO3035 high-frequency laminates.

RT6000 series: based on ceramic filled PTFE circuit material, for the need for high dielectric constant electronic circuit and microwave circuit design, models are RT6006, dielectric constant 6.15, RT6010, dielectric constant 10.2.

TMM series: Composites based on ceramics, hydrocarbons, thermosetting polymers, models: TMM3, TMM4, TMM6, TMM10, TMM10i, TMM13i, etc.

Why us?

01. We have maintained close and good cooperative relations with various high-frequency, high-speed material manufacturers, with sufficient inventory to ensure the quality of HF PCB from raw materials.

• Various models and specifications are available in Rogers, Taconic, Arlon, Nelco, Isola.

• To provide high-quality materials for communication equipment suppliers to ensure the stability of the performance of communication equipment.

• Professional process and technical personnel for design planning, process planning, product inspection planning for communication HF circuit board to provide the best quality processing scheme.

• Perfect quality control capability, 300 technical personnel engaged in more than 10 years, advanced high-frequency PCB testing equipment, rich experience in high-frequency board production.

• We can produce high-frequency hybrid circuit board (high-frequency material +FR4), 8mm super thick high-frequency PCB, copper base, ceramic base high-frequency circuit board, and so on.

• We can provide all kinds of surface treatment technology, immersion gold, gold plating, immersion tin, immersion silver, silver plating, immersion gold, + OSP.

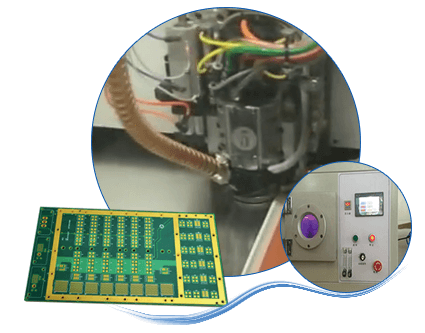

• Advanced plasma cleaning machine and laser exposure machine and other process equipment and testing equipment ensure the line and hole position's machining accuracy.

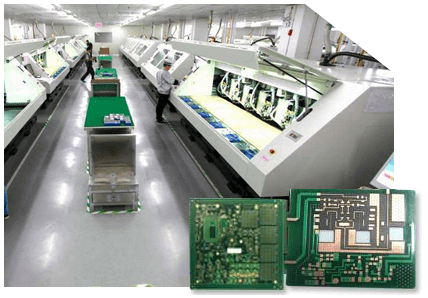

• Ultra-thick, ultra-long circuit board processing equipment meets various specifications of high-frequency circuit board processing for the communication industry.

• All products leave the factory through the strict performance index test, such as hole copper test, impedance test, thermal stress test, weldability test, open short circuit test, etc.

• ISO9001 and other international quality certification, in strict accordance with the international quality standards for quality activities.

• The 24-hour online quotation service allows you to find a satisfactory price for your PCB at any time.
• 24 hours express delivery channel, double-sided PCB support 24 hours fast delivery.

As The Best Multilayer Heavy Copper PCB + PCBA Manufacturer in China, We Are Your Best Choice.

Custom Quote Requipment

To ensure an accurate quote, be sure to include the following information for your project:

1. Complete GERBER files including the BOM list
2. Other file types (Altium, Protel, Or CAD)
3. "Read Me" notes for additional fabrication information
4. Quantities
5. Turn time
6. Panelization Requirements
7. Materials Requirements
8. Finish requirements

Inquiry Notes

As is known, PCB and PCBA is a customized product, so the details, please contact us and a quotation will be offered.
Please send us PCB files in gerber files, ".pcbdoc", ".lay", ".lay6" or ".brd", "CAM350 RS274X", "Protel 99SE", "P-CAD 2001 PCB", etc. For the PCBA quotation, the BOM list in the format of "xls" is also needed.

We can support your research and development efforts and meet your fast life cycles. We have set a separate department where the exclusive production planner will follow your orders' production to meet the requirements of Rapid PCB Prototyping and Quick Turn PCB.

1) We do PCB from double side up to 30-layer Multilayer PCB, HDI jobs.
2) If you have repeat orders from other suppliers and transfer to JHYPCB, we can accept FREE OF TOOLING.
3) Except for excellent quality and professional service, we also pay every detail for our customers, for example, package to use Desiccant packs & moisture indicator in the vacuum-sealed pack to protect PCB.
4) Material: We have FR4 TG135/TG158/TG180 normal material in stock, also have FR1/ FR2/ FR3/ CEM1/ CEM3/ ROGERS/ ARLON/ ISOLA.
5) Rigid / flex/ flex-rigid PCBs with UL approved.
6) Flexible, quick feedback for customers always.
7) Quickly offer will be less than 2 hours. Some top urgent inquiries we can offer within 1hour.

We provide one-stop PCB/PCBA customization services. To meet all of customer's PCB/PCBA requirement is JingHongYi PCB service's goal.
