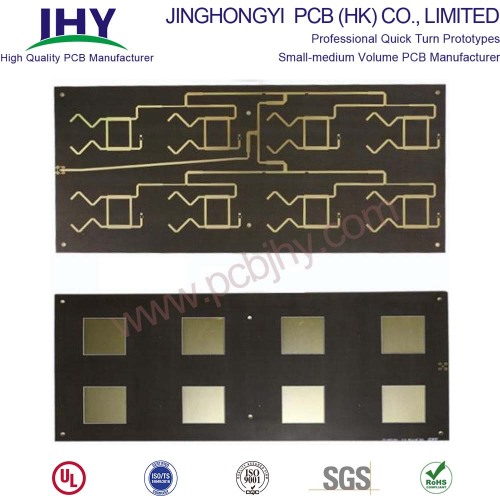

Rogers RT / Duroid 5880 High-Frequency PCB Board

Product Name: Rogers RT / Duroid 5880 High-Frequency PCB Board
Plate: Rogers RT / Duroid 5880
Plate thickness: medium thickness 0.508mm
Dielectric constant: 2 layers
Layers: 2
Surface Technology: Immersion Gold
Copper thickness: base copper 0.5oz, finished copper thickness 1oz
Purpose: Communication Equipment

RT/duroid 5880 high frequency printed circuit board is made of polytetrafluoroethylene glass fiber reinforced material. High-frequency circuit design always has strict requirements on the dielectric constant of printed circuit board. The dielectric constant of RT / Duroid 5880 is only 2.2 when it is measured at the working frequency of 10GHz, which is significantly lower than that of similar materials on the market at present. Therefore, from the perspective of performance parameters and production cost, the board is more suitable for high-frequency design applications than similar products. At the same time, the dielectric loss of the board is only 0.0009 measured under the same standard. The extremely low dielectric loss makes it very suitable for the application of high-frequency and wide-band design that requires the minimization of dispersion and loss. It is mainly used for the point-to-point digital radio antenna, microstrip and stripline circuits, millimeter-wave applications, missile guidance system, military radar system, the high-frequency circuit board of commercial aviation telephone.

Characteristics of RT / Duroid 5880 high frequency board:

1. Very low dielectric constant, measured at 10 GHz, the dielectric constant is 2.20 ± 0.02;
2. Very low dielectric loss, measured at 10GHz, dielectric loss factor is 0.0009

Rogers RT / Duroid 5880 High-Frequency PCB Board Manufacturing

Jinghongyi PCB, manufacturer and supplier of high quality and high density Rogers Material PCB Board, Rogers PCB Circuit Boards in Shenzhen, China. Provide PCB prototype, High Frequency PCB, High-speed PCB, RF PCB, Multilayer PCB, HDI PCB, impedance PCB, and PCB assembly services, etc. Rogers is one of the world famous suppliers of high-frequency circuit board and high-speed circuit board. Rogers PCB is generally multi-layer PCB, with immersion gold surface treatment. Another PCB material is FR-4, which is different from Rogers. FR-4 is a code of fire-resistant material grade, which means that the resin material must be able to extinguish itself after burning. It is not a material name, but a material grade.
