Rogers RO4003C High Frequency PCB

Ro4003c is a kind of material with proprietary glass woven fabric reinforced hydrocarbon resin system / ceramic filler. Its electrical performance is very close to PTFE / woven glass cloth material, and its processability is similar to that of epoxy resin/glass cloth material. Ro4003c provides strictly controlled dielectric constant and loss, but its price is a fraction of that of traditional microwave materials, and special through-hole plating pretreatment or operation procedures are not required. Ro4003c can provide two different types of glass cloth 1080 and 1674, but both meet the same electrical performance specifications of laminates. It is suitable for aerospace, microwave / RF applications with high reliability.

Features:
• dielectric constant: 3.55 @ 8GHz ~ 40GHz
Dielectric loss tangent: 0.0027 @ 10GHz / 23 ℃
• standard epoxy / glass cloth processing can be used

Rogers RO4003C High Frequency Printed Circuit Board Manufacturing

Jinghongyi PCB, manufacturer and supplier of high quality and high density Rogers RO4003C High Frequency Printed Circuit Board in Shenzhen, China. Provide PCB prototype, High-speed PCB, RF PCB, Multilayer PCB, HDI PCB, impedance PCB, and PCB assembly services, etc. Rogers is one of the world famous suppliers of high-frequency circuit board and high-speed circuit board. Rogers PCB is generally multi-layer PCB, with immersion gold surface treatment. Another PCB material is FR-4, which is different from Rogers. FR-4 is a code of fire-resistant material grade, which means that the resin material must be able to extinguish itself after burning. It is not a material name, but a material grade.

Rogers RO4003C High Frequency PCB Product parameters

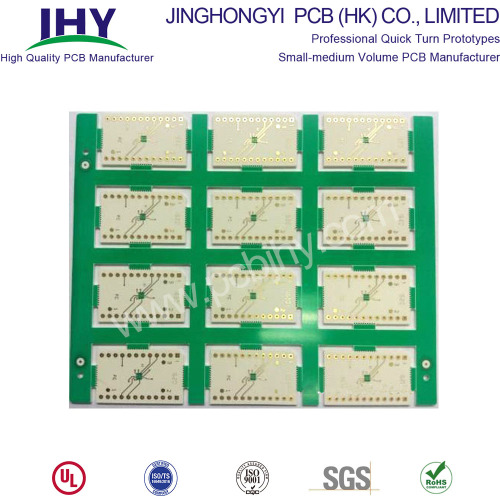

Product Name: Rogers RO4003C High Frequency PCB Circuit Board
Plate: Rogers RO4003C
Layer: 2
Plate thickness: Base material 0.762mm
Copper thickness: 1 oz

Minimum line width / line spacing: 0.1mm
Surface technology: Immersion Gold
Application: Instrument and equipment

Characteristics of Rogers RO4003C

Rogers RO4003C is a kind of hydrocarbon / ceramic laminate with dielectric constant of 3.48. It meets the requirements of commercial equipment manufacturers for PCB.
It has the following advantages:
1. Low RF loss
2. Fluctuation of low dielectric constant with temperature
3. Low z-axis thermal expansion coefficient
4. Low internal expansion coefficient
5. Low permittivity tolerance
6. Stable electrical characteristics at different frequencies
7. Easy to mass production and FR4 multi-layer mixed pressure, high cost performance
