Rogers RO4350b High Frequency PCB

Rogers RO4350b High Frequency PCB Manufacturing

Jinghongyi PCB, manufacturer and supplier of high quality and high density Rogers RO4350b High Frequency PCB in Shenzhen, China. Provide PCB prototype, High-speed PCB, RF PCB, Multilayer PCB, HDI PCB, impedance PCB, and PCB assembly services, etc. Rogers is one of the world famous suppliers of high-frequency circuit board and high-speed circuit board. Rogers PCB is generally multi-layer PCB, with immersion gold surface treatment. Another PCB material is FR-4, which is different from Rogers. FR-4 is a code of fire-resistant material grade, which means that the resin material must be able to extinguish itself after burning. It is not a material name, but a material grade.

Rogers RO4350b High Frequency PCB Product parameters

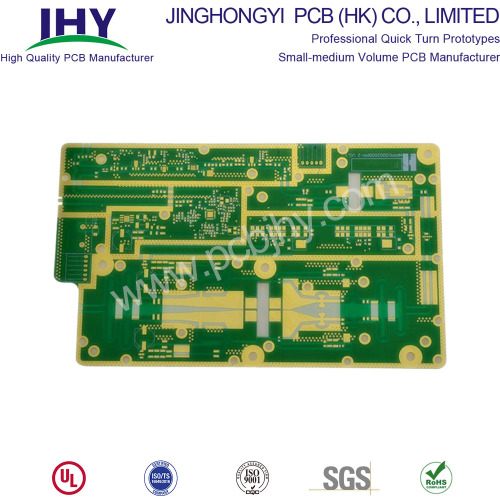

Product Name: Rogers RO4350B High Frequency PCB Board
Plate: Rogers RO4350B
Medium thickness 1.524mm (60mil)
Dielectric constant: 3.48
Layer: 2
Plate thickness: finished product thickness 1.6mm
Copper thickness: base copper 0.5oz, finished copper thickness 1oz
Surface technology: Immersion Gold
Application: RF communication instrument, microwave antenna circuit board

Characteristics of Rogers RO4350bB

Rogers RO4350B is a kind of hydrocarbon / ceramic laminate with dielectric constant of 3.48. It meets the requirements of commercial equipment manufacturers for PCB.
It has the following advantages:
1. Low RF loss
2. Fluctuation of low dielectric constant with temperature
3. Low z-axis thermal expansion coefficient
4. Low internal expansion coefficient
5. Low permittivity tolerance
6. Stable electrical characteristics at different frequencies
7. Easy to mass production and FR4 multi-layer mixed pressure, high cost performance
