Double Sided PCB Board Prototype manufacturer

The Double-Sided PCB Board Prototype is the substrate of nearly all electronic circuits.

Custom Double Sided PCB Board Prototype design and fabrication can be useful for a final product, but early in development, it is often more convenient to build on a board designed for prototyping.

With the continuous development and updating of electronic products, many products need to use Double Sided PCB Board. However, whether the design is reasonable or not, and whether it can achieve the effect after the product is finally put into mass production, this requires us to make a Double Sided Prototype PCB for testing ahead of time.

Depending on the requirements and materials, you may also need: Metal Core PCB, Double Sided Copper Prototype PCB.

How Are Double Sided PCBs Made?

Construction of Double Sided Prototype PCB

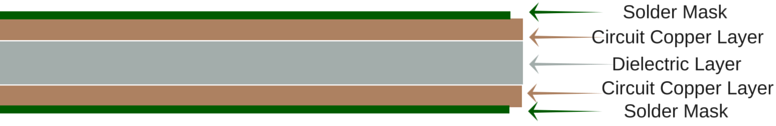

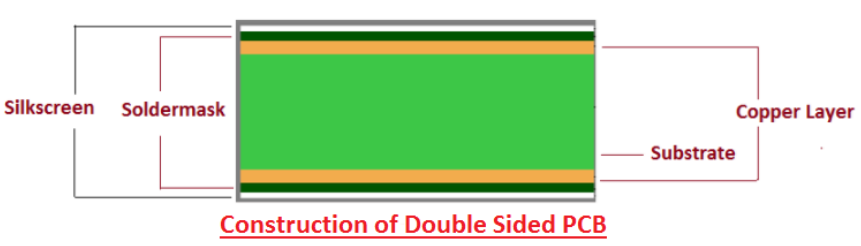

Construction of double sided PCB is similar to single sided PCB with some exceptions i.e. some layers are laminated on both side of the board.

Base of the double sided PCB is composed of insulating material also known as substrate which is mainly fiber glass epoxy resin. What type of base material is used, defines if PCB board is Flexible PCB or Rigid PCB.

Copper foil is laminated on both side of the substrate in case of double sided PCB.

Similarly solder mask lies above the copper foil on both side of the board which gives protection.

There exists a silk screen above solder mask on both side of the board which is mainly used for adding symbols and characters on the board so a common person can understand the board functions.

All these layers that are used in the construction of double sided PCB are used in the construction of single sided PCB, but these layers are appeared to both side of the board as compared to single sided PCB on which these layers are present only on one side of the board.

Benefits of Double Sided Prototype PCB:

More flexibility for designers

Double sided PCB is an ideal choice for most of the professionals in terms of its flexibility and ease of use.

Increased circuit density

If you intend to sink or source current or in other words if your board act like providing a current to other shields or slaves, then picking double sided PCB makes sense because it comes with both top layer and bottom layer. You can use bottom layer as a ground copper pour.

Relatively lower costs

It comes with increased circuit density and pertains to lower cost as compared to multilayer complex PCBs.

Intermediate level of circuit complexity

Double sided boards have a leg over other single sided boards in terms of their complexity because if your board is densely populated and you intend to connect lot of components on single board then it is better to have some components connected on the bottom side of the board.

Reduced board size (which can reduce costs)

Double sided PCB can be developed using reduced board size which ultimately helps in reducing overall cost. If you interested in advanced electronics, you can use Proteus Ares to design your PCB.

If you are not allowed to change board size that can limit putting thicker traces, and you are instructed to route Vcc and GND on a single board, then it is better pick a two layer board and route Vcc and GND on the bottom layer.

Applications of Double Sided Prototype PCB

There are near limitless applications for old and new designs. Fine line surface mount, ultra high copper build, high and low temperature, Solder coated, Silver, and Gold finishes are just a few examples of DSPT applications.

THE FOLLOWING ARE APPLICATIONS IN WHICH DOUBLE SIDED PCBS CAN BE USED:

Industrial controls
Power supplies
Converters
Control relays
Instrumentation
Regulators
UPS systems
Power conversion
HVAC
LED lighting
Hard drives
Printers
Phone systems
Power monitoring
Automotive dashboards
Line reactors
Test equipment
Amplifiers
Traffic systems
Vending machines
