Prototype PCB Board FR4 Double-Sided Copper Clad Laminate

PCB Board FR4 Double Sided PCB are in use throughout the electronics sector, and more particularly in industrial and automotive applications. JHY PCB specializes in series production of double-sided printed circuit boards with thicknesses in the 0.1-3.2mm range.

JHY PCB offers PCB Board FR4 Double Sided with the following special features:

• Edge plating for shielding and ground connection
• Metalcore for high thermal conductivity (metal, copper or aluminum)
• Copper inlay for hotspot cooling
• The solder resists in green, white, black, blue, grey, brown, etc.
• Copper thickness of over 140μm
• All surfaces which are commonly used in the printed circuit board industry.

PCB Board FR4 Double Sided, the material is FR4.1oz finished copper thickness. Finished board thickness is 1.6mm. Black solder mask.White silkscreen. Surface Finish is ENIG 1u". Min.trace width is 0.1mm. Min.trace space is 0.1mm.

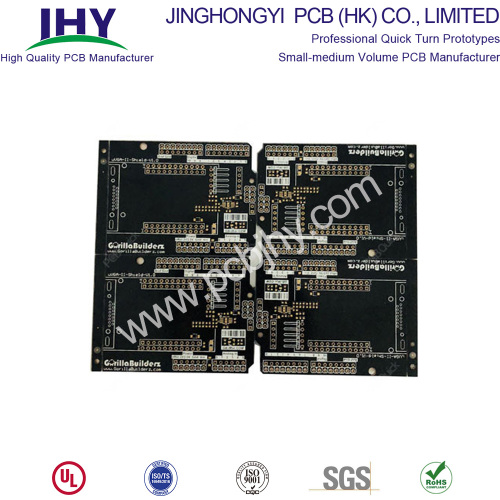

Image for Double Sided PCB Board

Double Sided PCB Board manufacturing

Why choose us?

• Save money&time! Achieve peace of mind!
• A professional and trustworthy Double Sided PCB Board FR4 manufacturer.
• Fastest PCB Prototype.
• One stop solution for various PCB & SMT Stencil.
• Low cost for simple PCB.
• Affordable price for high-tech PCB.
• Minimum orders 1pcs.
• 24-hour online customer service.
• Professional PCB engineer for one-to-one service.
• Shipment on time.
• Guarantee good service and quality from PCB quotation to delivery.

Certification(UL:E466618, TS16949,  ISO9001.RoHS)
