20W Super Thin LED Driver

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB

Min. Order:: 500 Piece/Pieces

Min. Order:: 500 Piece/Pieces

Delivery Time:: 30 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C,T/T
Incoterm:	FOB
Transportation:	Ocean,Land,Air
Port:	Shenzhen

Product Description

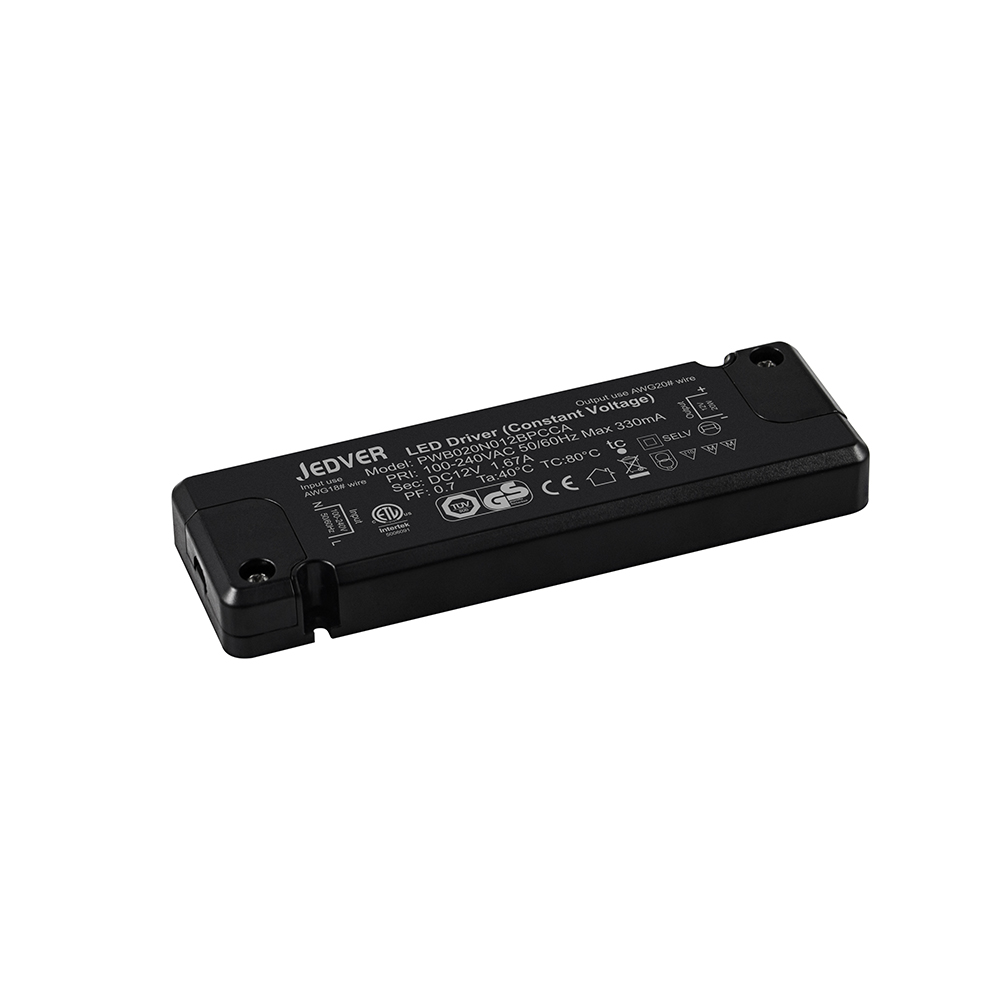

Ultra thin 20W 12V 1660mA constant voltage power supply driver.

super thin LED driver, mainly used for LED Panel Light, and others which are in accordance with the above specifications for the LED external power supply. Super thin type, easy installation, wide input voltage range, suitable for worldwide civil power supply area, high efficiency, no RF interference, over-voltage & over-current & short circuit protection, good security isolation, long converter life and so on.

LED Driver /LED Power Supply for cabinet shelf already do aging test to ensure the user safe. And diver have passed CE, ETL, GS certifications. 12V/24V both can provide.

^{Specification}

Item.No	PWB020N012BPCCA
Power	20W
LWH	140.545.515.7
Input	100V-240V
Efficiency	83%
PF	>0.7
Output	12V
Current	1670mA
Ta	40℃
Tc	80℃

Standards

UL8750	IEC61000-3-2
UL1310	IEC61000-3-3
CE	EN55015 Class B EN61547
LVD	IEC61000-4-2 EN61347-1
EMC	IEC61000-4-3
EMF	IEC61000-4-4
ERP	IEC61000-4-6
TUV	IEC61000-4-8
GS	IEC61000-4-11
