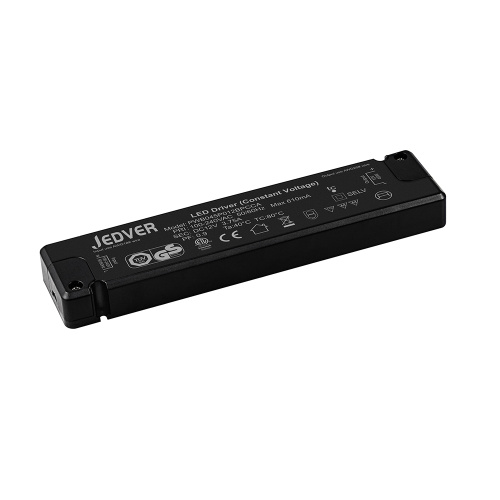

Switching LED Power Supply 12V 45W

Get Latest Price

Payment Type:: T/T

Incoterm:: FOB

Min. Order:: 500 Piece/Pieces

Min. Order:: 500 Piece/Pieces

Delivery Time:: 30 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T
Incoterm:	FOB
Transportation:	Ocean,Land,Air
Port:	Shenzhen

Product Description

Power supply 12V 45W mainly used as LED lights driver, wide inpur voltage range, suitable for worldwide civil power supply area. Driver is very easy to install, it can be installed by screw or double sided-adhesive. Switching LED power supply has long converter life and terminal block for quick connection. Aging time depends on customer needs and product itself. High precision and stable output to ensure lifetime of LED lights. Driver already did open circuit, short circuit, over load and over temperature protection.

Specification

Description	45W 12V
Input
Input voltage range	100-240VAC
Input frequency range	50/60Hz
Power factor at full load (at 230VAC)	>0.90
Efficiency	>82%
Standby power	<0.5W
Output
Max output power	45W
DC output voltage	12V
Output current	3750mA
Numbers of slots	2
Protection
Over temperature protection	yes
Over loading protection	120%~150% rating output voltage
Short circuit protection	output shut down with automatic recovery
Over current protection	output shut down with automatic recovery
Over voltage protection	output shut down with automatic recovery
Protection class	Ⅱ
IP rating	20
Environment
Ambient temperature range	-10~40℃
Working humidity	5~100%
Maximum temperature at Tc point	80℃
Storage temperature range	-40~80℃
Dimension
LengthWidthHeight (mm)	212.650.622.5
Others
Housing material	PC
Housing color	Black
Period of warranty	3 years
Life time (Ta=25℃)	30,000h

Switching LED Power Supply
