12V 15W Constant Voltage Super Thin Driver

12V 15W Constant Voltage Super Thin Driver

Get Latest Price

Payment Type:: T/T

Incoterm:: FOB

Min. Order:: 500 Piece/Pieces

Min. Order:: 500 Piece/Pieces

Delivery Time:: 30 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T
Incoterm:	FOB
Transportation:	Ocean,Land,Air
Port:	Shenzhen

Product Description

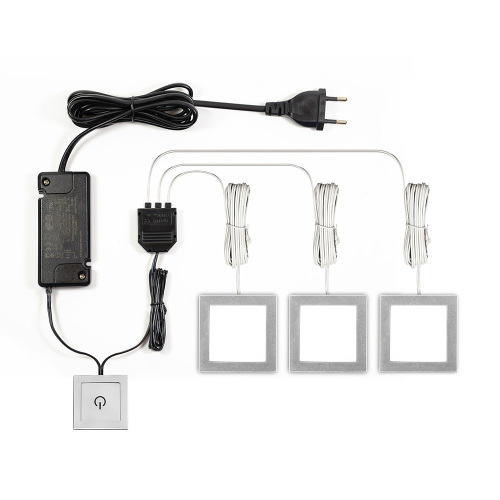

12V 15W super thin driver has long converter life, high precision and stable output, eusure life of LED light. Constant voltage super thin driver have passed GS, CE, ROHS certifications. The height of the driver is only 15.7mm, efficiency is 83%. Constant Voltage Driver can connect with our LED cabinet lighting, and also can connect with control box, then use the sensor to control the light.

Description	15W 12V
Input
Input voltage range	100-240VAC
Input frequency range	50/60Hz
Power factor at full load (at 230VAC)	>0.7
Efficiency	>80%
Standby power	<0.5W
Output
Max output power	15W
DC output voltage	12V
Output current	1250mA
Numbers of slots	2
Protection
Over temperature protection	yes
Over loading protection	120%~150% rating output voltage
Short circuit protection	output shut down with automatic recovery
Over current protection	output shut down with automatic recovery
Over voltage protection	output shut down with automatic recovery
Protection class	Ⅱ
IP rating	20
Environment
Ambient temperature range	-10~40℃
Working humidity	5~100%
Maximum temperature at Tc point	80℃
Storage temperature range	-40~80℃
Dimension
LengthWidthHeight (mm)	1404515.7
Others
Housing material	PC
Housing color	Black
Period of warranty	3 years
Life time (Ta=25℃)	30,000h
