Touch Dimming On/Off LED Under Cabinet Bar Light

Touch Dimming On/Off LED Under Cabinet Bar Light

Get Latest Price

Payment Type:: T/T

Incoterm:: FOB

Min. Order:: 500 Piece/Pieces

Min. Order:: 500 Piece/Pieces

Delivery Time:: 15 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T
Incoterm:	FOB
Transportation:	Ocean,Land,Air
Port:	Shenzhen

Product Description

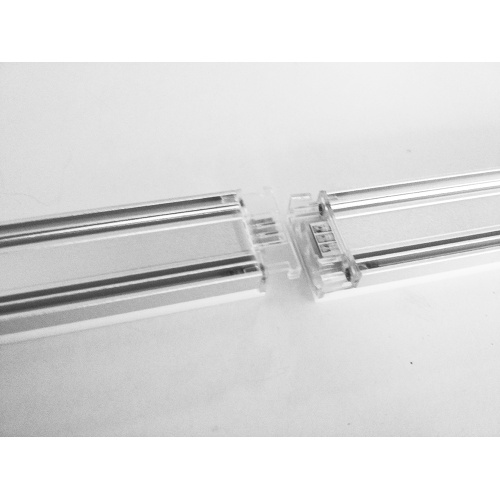

Touch Dimming LED Under Cabinet Light Bar is available in white or bronze finish on a stainless steel housing. The diffuser is built from a tempered prismatic frosted glass that can slide easily onto the fixture for easy installlation. Through wiring can be accomplished with the mold knock-outs on end caps. The LED life rate stands at 50,000 hours providing a warm 3000K color temperature. This Energy star listed LED under cabinet light bar is a perfect solution for lghting in applications like kitchen under cabinets, cove lighting, retail, commercial and residential locations.

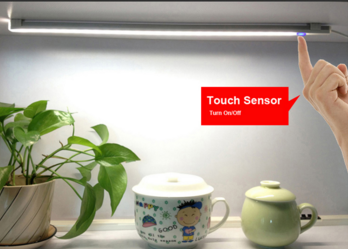

The Bar Light with touch dimming on/off switch built-in, surface mounted with screws or magnet mount, invisible LED chip, length can be customized, up to 1.5m and no shadow.

Specification
Lighting Resource Watts	10W±10%
Color temperature	3000k 4000k 5000k
Light Efficiency	850lm±10%
Type of LED	SMD2835
Number of LEDs	90PCS
Colour Rendering Index (CRI)	>80

Fixture and Electrical Equipment
Switch	touch on/off Dimmable
Beam angle	120° no lens
Body Material / Color	Aluminium alloy+PC
Lamp-Chimney Material /Color	transparency
Input Watts	10W±10%
Light Output Ratio(LOR)	>75lm/W
Input Voltage	DC12V/24V
outer carton	625255175mm
inner box	6154820mm

Protection
IP Rating	IP 20
Protection class	III

Environment
Operating temperature range	-20 °C - +45 °C
Working humidity	40 - 80%
Storage temperature range	-40 °C - +100 °C
