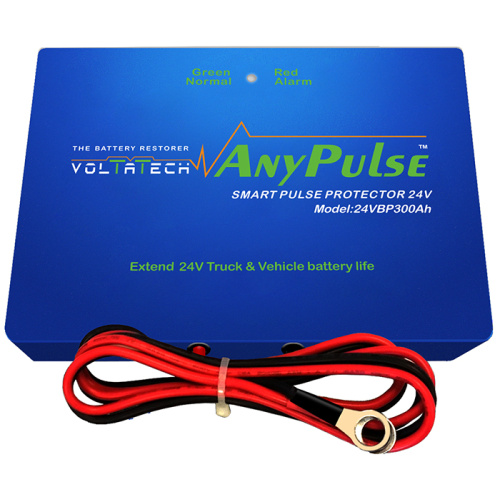

24V Truck Starter Battery Protector

In 1998,The Lead Acid Start-up Battery Protector and Maintainer was developed successfully, and till today, it is still widely used in Military and lots of Industries duo to its RELIABILITY & EFFECTIVENESS by wildly VERIFIED more than 20 years. The reliability and effectiveness of the battery recovery and Truck Starter Battery Protector lie in its verifications being:

1)In 1999, Function testing approved by the Metrology Center of Chinese Army(PLA) which result is cells SOH improved 75%-98% as new, since then they still purchase 24V Truck Starter Battery Protector from us

2)In 2000, Jointly performed functional test approved by Zhejiang University , Electrochemical Research Institute as well as Provincial Power Association,through continuous observation for transparent battery and significant desulphation effect

3)In 2000, Chemical Power Supply Institute convened a Validation Committee formed by experts of chemistry, electrochemistry, physics power supply, environmental sciences and electronic engineering, agreed that our technology can extend battery life by 1~3 times.

The start-up battery is the soul of your vehicle.  It starts the Engine, and generates the energy necessary for the operation of all other vehicle's electric aspects. But did you know that it only has two years of life approximately because the battery's negative plate is sulphated fast. Reducing the functional capacity of the battery until its complete inoperative. Nothing could be done about this because the unpredictability inherent with common use of the battery within any vehicle's given environment was in control.

That's why we present the 24V TTruck Starter Battery Protector. We offer you a fully automatic Truck Starter Battery Desulfator, it works 24hrs a day. 24V Trucks Start-up Battery Protector is not a battery charger. It is a patented electronic Sufuric Crystal Cleaner which will eliminate the battery sulphation that is the main cause of early failures in lead acid start-up batteries. This 24V Truck Battery Intelligent Protector can:

• Keep the start-up battery in"like-new"condition
• Provide faster starts up your car or truck.
• Extend battery lifes up to 1~2 times as before if you install to your new battery
• Reduce you battery recharge time
• Increase aged battery capacity to ensure you to drive on the road without downtime
• Increase your customer satisfaction because of your timely delivery without truck's roadside breakdown

This revolutionary Battery Protector saves time, money and effort by reducing battery-related downtime, maintenance and replacement.

APPLICATION:
It's used in 24V36Ah~300Ah lead-acid battery. It is special for start-up battery of vehicle or watercraft, as well as in solar energy storage battery and UPS back up power.

SPECIFICATION:

• Operation Temperature:   -20℃~70℃
• Operation Current: 25~45mA
• Peak Pulse Voltage:    ≥1,5V
• Impulse Frequency: 8,4KHz±10%
• Over voltage alarm value:   29,8V ± 0,2V
• Under voltage alarm value: 23,6V ± 0,2V

EASY INSTALLATION:

Choose a battery smooth surface with no heat, no overflow acid and not sealed, wipe out the dust and water vapor; tear off the double-sided adhesive protective film at the bottom of the battery smart pulse protector, press to the installation position,( suggest to prepare glass-rubber or AB glue to make the protector bottom firmly adhesive). Loosen the fixed screw on battery pole, connect the black wire of protector to the negative(-) terminal of the battery, the red wire to the positive(+) (refer to the drawing below), and then tighten the screws of battery.

The protector automatically detects the working state of the battery after proper polarity connection. If everything is normal, the indicator light is green, there is no alarm sound. If the battery is in abnormal condition, issue the alarm tone as our instruction manual.

WARRANTY:
The start-up battery protector -- 24V TBP300Ah identified herein is covered by a 2-YEAR warranty valid from the date of purchase. This warranty covers defects caused by faulty components or workmanship, including the labour required for repair in our authorized workshops.This warranty does not cover defects caused by incorrect installation, improper use or abuse. The existence of such causes shall be determined by our workshops technical services.
