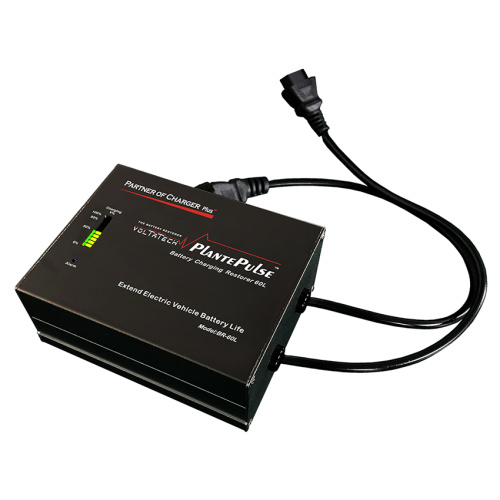

60V eTricycle Charging Repairer

We present you the new high-tech products of EV Battery Charging Restorer named 60V eTricycle Charging Repairer. You can now give your etricycle power batteries a second life and extend battery life to be doubled. As you will read, the application of this technology is kind of just as "doctors treat patients in hospital" to keep it healthy again or recover it as new battery for a longer time. This 60V etricycle Power Battery Smart Maintainer:

• A kind of etricycle Power Battery Life Saver with pulse desulfation technology, Smart, Simple and Safe
• Ensure the EV driving mileage is longer, reduce downtime on the road
• The connection with common charger is simple, safe and convenient, make it become a battery smart charger with Power Battery Charging Maintainer function
• Suitable for the popular 60~72V batteries of electric vehicles, buy a set, multi vehicles benefit in family
• A strict circuit filtering technique, does not affect the charging parameters of the charger, safe and carefree

With the rapid rise and development of Internet e-commerce sales, express delivery business has also been rapid developed. As the main means of transportation, a large number of electric tricycles and motorcycles used in express business, but the battery problems and early failure have plagued owners since its applied until thought to be "dead" or duo to be downtime. Sulphation and water loss of lead-acid batteries are the main cause for cells capacity loss and downtime.  Repair your used batteries by our off line battery repair system or maintain your new battery as everyday charging link with our 60V eTricycle Charging Repairer.

Although the battery of electric tricycles and motorcycles is not excessively expensive, its cost goes up dramatically when you include the cost of downtime, disposal and delivery failure. These costs will be reduced or even eliminated by simply extending battery life and increasing battery efficiency after you install our 60V150L-iCM device with battery optimizer function.

APPLICATION
It is used for 60V 40-150Ah Electric tricycles and motorcycles lead-acid battery bank.
It is not suitable for these battery banks with cell deformed appearance, positive plate softening and corrosion, active material shedding, short circuit, open circuit.

TECHNICAL SPECIFICATION:

 1) Environmental Conditions

• Working Environment Temperature: -10℃~50℃
• Storage Environment Temperature: -40℃~70℃
• Relative Humidity of Environment: 45% ~90%RH

2) Electrical Parameters

• Working Current:      40~90mA
• Pulse Peak Current:  ≥6,0A
• Maximum Voltage:    DC 63V±2V ~ DC 89V ± 2V
• Frequency Range:    7,5kHz~10kHz

EASY INSTALLATION:

Step 1: Before used, first check the polarity of the charging port on the battery bank, It should be consistent with the input and output polarity of the bottom of the Battery Charging Restorer device to be used, otherwise it will damage the 60V150L-iCM Pulse charging desulfator device or your charger.

Step 2: Insert the charger output header into the 60V150L-iCM Battery Charging Optimizer device input socket

Step 3: Let the output of the 60V150L-iCM battery repair plug into the charging port of the battery bank

Step 4: The 60V150L-iCM Battery Smart Pulse Charging Restore Device will automatically measure the battery voltage. After it is normal, please insert the input plug of the charger into the electrical outlet. The 60V150L-iCM pulse restorer device will remove sulfated crystals in the charging process.

Electric Vehicle Battery Charging Restorer wire connection map

WARRANTY:
The 60V150L-iCM identified herein is covered by a 2-YEAR warranty valid from the date of purchase. This warranty covers defects caused by faulty components or workmanship, including the labour required for repair in our authorized workshops.This warranty does not cover defects caused by incorrect installation, improper use or abuse. The existence of such causes shall be determined by our workshops technical services.
