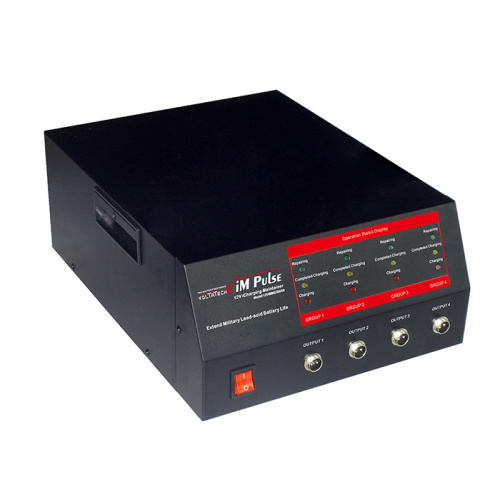

12V Battery iCharging Repairer

The 12V Battery Intelligent Charging Repairer of lead-acid battery based on the patented smart charging pulse principle has practical significance for extending the battery service life, improving the battery capacity and reducing the battery Users expenditure waste caused by the excessive waste of lead-acid battery. The 12V Battery iCharging  Repairer has many features:

• Charging is based on composite pulse charging mode. Each charging pulse is followed by depolarizing pulse. 12V Battery Smart Repairer can effectively eliminate the polarization voltage, lower the plate temperature rise, increase charge acceptance of battery, protect the plate from damaging and extend battery life.
• The charging current is reduced step by step by applying descending "or" logic relationship , to effectively prevent the battery from failure due to thermal runaway.
• Battery connection detection function: The battery takes 2 to 3 seconds to switch on pulse output after correct polarity connection, to effectively prevent the instantaneous high current from generating contact spark.
• Auto power-off function: If the connection battery is not detected by corresponding output, then the power supply will automatically off to save energy.
• Reverse protection function: The emergency support system does not work when the battery poles are connected reversely due to maloperation, with a buzzer alarm indicating polarity reversed.
• Pulse maintenance can effectively prevent buildup of new lead sulfate crystallization through continuous pulse disturbance. The tiny pulse current can also offset the self-discharge of the battery, and ensure that the battery can be put into normal use at any time no matter how long it is stored.
• Precise voltage detection and control function: during pulse maintenance, strictly control the battery terminal voltage within the voltage range of gas-evolving (13.65V ± 0.1V), once you reach the threshold, immediately turn off the maintenance of pulse current, and turn on the depolarizing pulse, to eliminate the battery polarization voltage, enhance voltage detection accuracy, and prevent the overcharge from forming.

We developed the high-tech Battery Charger And Restorer 2-in-1 for capacity recovering of early failure lead-acid battery due to irreversible sulfation and puts forward a battery charging and recovery method that generates smart frequency electronic impulse oscillation based on the MCU intelligent control principle, so as to refine and dissolve the lead sulfate on the surface of electrode, reduce the Internal Resistance(IR) in battery, improve the charging efficiency of electrode and recover the battery capacity just like Battery Life Saver. The 12V Battery Intelligent Charging Repairer of lead-acid battery based on the electronic smart charging pulse principle has practical significance for prolonging the battery service life, improving the battery capacity and reducing the military expenditure waste caused by the excessive waste of lead-acid battery. Long-term and a large amount of application tests have been conducted on repairing different failure batteries, the test result shows that the early failure battery due to long-term unused and improper use or maintenance can be repaired effectively.

The 12V Cell Repairing Charger and Restorer--12V iRC300Ah can produce continuous pulse wave resonance. Through continuous pulse disturbance, it can effectively remove the minor lead sulfate crystals formed and can effectively prevent generation of crystallization sulfide, so that battery plate is always new and under efficient working condition. The tiny pulse current can also offset the self-discharge of battery, and ensure that the battery can be put into normal use at any time no matter how long it is stored.

To reduce the charging links of the battery to be sealed, after removal from various military equipment, the batteries can be directly connected to 12V Battery iCharging  Repairer, which will enter pulse maintenance state after fully charging the battery.

APPLICATIONS:

It is applicable to various types of 12V/36 to 300Ah lead-acid batteries

SPECIFICATIONS:

• Working temperature: -20℃~40℃
• Input voltage: AC220V/110V±15%
• Maximum charge output current: ≤5A
• Maximum power: Charge≤360W; Maintenance≤36W
• Pulse maintenance current: 50~110mA
• Output groups: 4 PCS 12V Cells

THE RIGHT CONNECTION METHODS

There  are 2 ways of connection methods as  below:

1) 12V Cell single connection: You can use your Smart Battery Management System of 12V iRC300Ah to pulse maintain your batteries

2) 12V Cells packed in series by 2 PCS 6V Cells: You can use your Smart Battery Management System of 12V iRC300Ah to pulse maintain your batteries

But if the  12V Cells packed  in series  more than 3 PCS Cells, The effectiveness  cannot achieve your expectations.

THE WRONG CONNECTION METHODS

Some wrong ways of connection example as bellow, you should avoid it or destroy your device.

Warranty description

This 12V Battery iCharging  Repairer--12V iRC300Ah has a warranty period of 2 years. For users who use the system normally according to this instruction, if the equipment malfunctions, the users can send the equipment voucher and the equipment to the manufacturer within one year after purchase, and can get the maintenance for free. For all repairs and maintenance, their performances are inspected by the factory product.

For users who fail to use equipment in accordance with this manual and cause damage to the equipment or exceed the warranty period, they may send the equipment to the manufacturer, charge for maintenance and charge only the material expenses. For all repairs and maintenance, their performances are inspected by the factory product.
