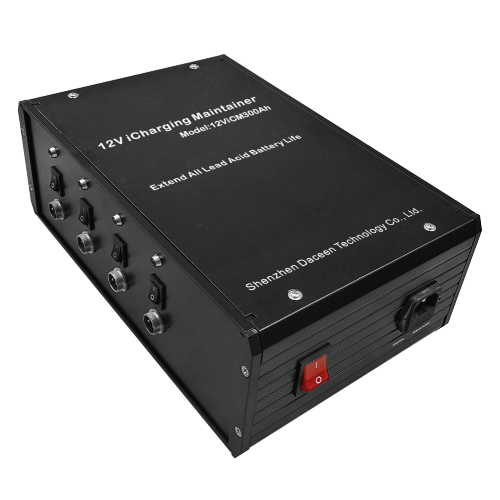

12V Battery Smart Maintainer

The product was originally used for backup power battery and vehicle starter battery batteries in military warehouses,the battery repair system gains its effectiveness approved by:

1. In 1999,Guangzhou military region of China PLA conducted by vehicle and ship equipment warehouse using our pulse technology,
2. In 2000, Jointly performed functional test approved by Zhejiang University , Electrochemical Research Institute as well as Provincial Power Association,through continuous observation for transparent battery and significant desulphation effect,
3. In 2000, Chemical Power Supply Institute convened a Validation Committee formed by experts of chemistry, electrochemistry, physics power supply, environmental sciences and electronic engineering, agreed that our technology can extend battery life by 1~3 times.

The lead-acid 12V300Ah Battery Smart Charger is mainly designed specific to the concentrated storage and management mode of combat readiness batteries by our army. Now, the batteries in reserved vehicles of our army are always in the inactive state and placed in the battery room of the equipment warehouse for long time, and needs charging maintenance regularly by a specially-assigned person, which wastes time and achieves a poor effect. However, by means of the Battery Smart Charging Maintainer, the battery capacity may not be reduced no matter how long the batteries are stored, no daily maintenance or servicing of the batteries is required, and the vehicles can start at any time. Our Battery Smart Pulse Charger saves a large amount of military expenditure. Moreover, it ensures the complete performance of the starting batteries of the vehicles and improves the maneuverability and quick reaction capability of the army.

SPECIFICATIONS:

• Pulse Current:50mA< I <150 mA
• Pulse Voltage:≥600mV
• Pulse Frequency:12KHZ~38KHZ
• Wave Rise time:≤150nS
• Power:14.4W
• Connection Cells  Qty:8 Cells

ENVIRONMENT CONDITIONS:

• Working Temperature: 0℃-40℃
• Relative Humidity: 35%-90%
• Atmospheric Pressure: 86-106 KPa
• Input Voltage: AC220V±10%/50Hz

APPLICATION METHODS:

1. First charge the battery to be used sufficiently; in case of open-type battery, check to make sure the electrolyte level and the electrolyte proportion conform to the provisions.
2. Turn off all switches of the Battery Maintenance Charger and connect the power line with 110V/220V mains socket. Connect the output line of the lead-acid Battery Smart Pulse Charger with the eight output ports of the machine, connect the red clip of the output line to the anode of the battery, and connect the black clip to the cathode of the battery.
3. Turn on the main power switch after confirming that all the connections are correct, then turn on the corresponding branch switch, the green indicator light of the way connected with the battery is normally on, and the Battery Charger and  Restorer 2-in-1 starts to Battery Repair as Battery Saver.
4. At the end of maintenance or when the battery needs to be activated, first turn off the branch switch of the maintenance battery, and then disconnect the output line and the battery, otherwise, the machine may be damaged.
