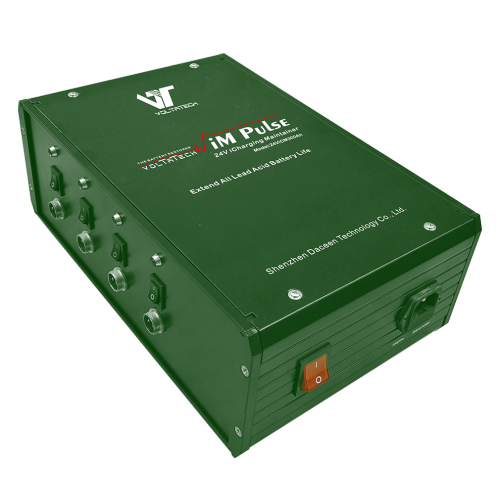

24V300Ah Battery Smart Charger

The lead-acid 24V300Ah Battery Smart Charger, also we can call it as the name of Battery Smart Charging Maintainer is applicable to the army and local vehicle repair plants, various battery manufacturers and battery retailers. At present, the battery manufacturers and the battery retailers cannot solve the problems of capacity reduction and failure caused by long storage time of the maintenance-free lead-acid batteries. However, such problems can be solved by using the Battery Charger and Restorer 2-in-1 which is the only effective way to repair the failing maintenance-free lead-acid batteries.

Batteries stored in warehouse are always used for emergency affairs such as customer service, sudden accidents and power downtime unpredictably, etc. Uptime is the most basic requirements in nowadays connected to all things in the world. Power systems rely on batteries to provide critical backup energy and power in sudden affairs. When power supply of normal grid is lost suddenly, the backup power systems must perform. Without proper maintenance of the stored battery, you should bear the costly repairs. Battery Repair by Battery Saver of 24ViCM300Ah  is your best choice to solve battery problems.

SPECIFICATIONS:

• Pulse Current:50mA< I <150 mA
• Pulse Voltage:≥600mV
• Pulse Frequency:12KHZ~38KHZ
• Wave Rise time:≤150nS
• Power:28,8W
• Connection Cells  Qty:8 Cells

ENVIRONMENT CONDITIONS:

• Working Temperature: 0℃-40℃
• Relative Humidity: 35%-90%
• Atmospheric Pressure: 86-106 KPa
• Input Voltage: AC220V±10%/50Hz

APPLICATION METHODS:

1. First charge the battery to be used sufficiently; in case of open-type battery, check to make sure the electrolyte level and the electrolyte proportion conform to the provisions.
2. Turn off all switches of the machine and connect the power line with 110V/220V mains socket. Connect the output line of the lead-acid Battery Smart Pulse Charger with the eight output ports of the machine, connect the red clip of the output line to the anode of the battery, and connect the black clip to the cathode of the battery.
3. Turn on the main power switch after confirming that all the connections are correct, then turn on the corresponding branch switch, the green indicator light of the way connected with the battery is normally on, and the Battery Charger and  Restorer 2-in-1 starts to Battery Repair as Battery Saver.
4. At the end of maintenance or when the battery needs to be activated, first turn off the branch switch of the maintenance battery, and then disconnect the output line and the battery, otherwise, the machine may be damaged.
