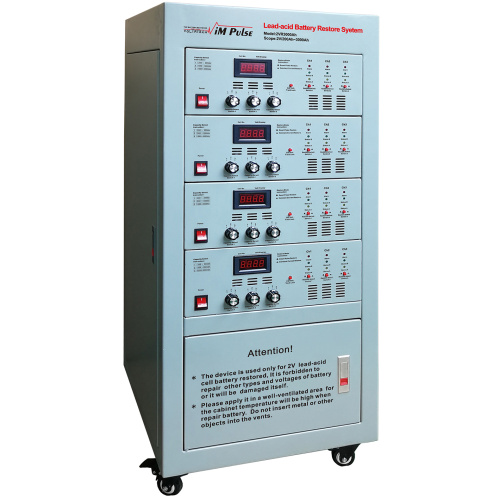

2V Battery Intelligent Pulse Maintainer

Off line Battery Repair System, professional routine maintenance of Battery maintenance. It is popular used in power battery, traction battery and stationary battery industry, so in the narrow sense, we also call it 2V Battery Intelligent Pulse Maintainer, and it plays a very important role and irreplaceable in Lead Acid Battery Recycling. This 2V Battery Intelligent Maintainer 2VR iPM3000Ah:

• Detailed test characteristic curve and data reports
• Lowest maintenance cost and best effectiveness
• Expanded lifespan of batteries
• Battery Tester's analyzing and testing  application software is free
• Smartly repair mode and High internal resistance repair mode for batteries with different characteristics in used
• 1year warranty of Battery reused after repaired completed
• 2 year warranty of Battery repair equipment self
• Intelligent control and management by IC design and MCU
• CE/RoHS/ISO9001-certified
• Field application certified - by Zhejiang University and Electrochemical Research Institute-
• Field application certified - by Department of Missile Engineering of PLA Ordnance Engineering College
• Joint appraisal by experts group - From Professional field of Electrochemistry, Physics Power Supply, Environmental Sciences, Electronic Engineering, etc.

As we all know, the improperly use or maintenance of batteries is the main reason of the lead-acid battery sulfation and failure. Therefore, battery repair is a systems engineering which requires the use of specialized equipment for regularly maintaining battery, also need professional maintenance to remove sulfation circularly and regularly based on the different size and condition of the individual batteries. We committed to providing the lead-acid battery pulse restore system and solution for users to successfully remove sulphation due to a electrical smart pulsation process.

APPLICATIONS

Off-line Intelligent Battery Maintainer mainly used in:

• Application to Industry Range: Electric Forklift, Sightseeing car, Golf Cart, Wind and Solar energy, UPS and Back up power system, Telecom base site battery, Agricultural Machine, Motorbike, Boat, Train, State Grid and Military battery for Sudden affair, etc.

• Applicable

  Battery Type Range: All of Lead Acid Battery(AGM, GEL, VRLA, MF, Flooded, Dry, Traction, Deep cycle and Stationary), and widely range used in 2V (200~3000Ah) cells.

TECHNICAL SPECIFICATION:

• Pulse restoring current: (3 stage adjusted upon cell capacity): 5A;10 A;20 A
• Pulse  Restore Voltage:≤5V
• The duty ratio adjusted smartly based on the battery sulphation degrees
• Synchronously operation cell Qty: Restore 12 pc 2V cells
• Input Voltage Range: AC198V-242V/50Hz-60Hz

TECHNICAL FEATURES and FUNCTION: (As Below Graphic)

• It can select pulse current in 3 stages for the cells with different capacities, can be used to repair 2V200Ah~3000Ah lead-acid battery
• It can smartly manage pulse current value, control the battery gassing and smartly adjust duty ratio, to obtain the optimal desulphation effect
• It can smartly control polarization voltage and automatically enable the battery repair pulse for maintaining, without be operated by man
• It has high-resistance repairing mode, which can be used to achieve best effective repairing for the battery not used for a long time
• Before repairing, please charge the battery fully, check it for the need of water adding or check the positive plate for softening and falling off, etc.
• We shall provide digital pulse charging equipment and intelligent discharge detection equipment, and the technical parameters shall be attached separately (if required)

EASY INSTALLATIONS (As Below Graphic)

Detailed applications and manual introduction, please see the technical data center.

HOW TO USE THE: Intelligent Battery Maintainer

There are two ways to use the battery repair system: Smart Pulse Desulfating Battery Repair and Battery Pulse Desulfator for Battery Care

• Smart Pulse Desulfating Battery Repair: allows you to repair old and aged (3,4,5, - more years) batteries, increase the aged or scarped battery capacity to more than 80% as new  and reuse it
• Battery Pulse Desulfator for Battery Care: allows you to keep your new battery in optimal on average, sulphate-free condition, by means of a yearly short time maintenance as a Intelligent Battery Maintainer


WHAT and HOW REPAIR A BATTERY OR BATTERY RECOVER PROCESS

Warranty:2 Years,Detailed information you can see from Production Manuel Introductions
