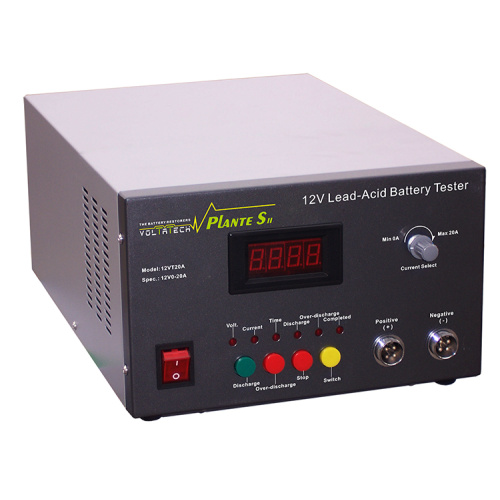

12V Cell Discharge Tester
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB
- Min. Order:
- 50 Set/Sets
- Min. Order:
- 50 Set/Sets
- Delivery Time:
- 35 Days
- Transportation:
- Ocean, Air
- Port:
- SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | SHENZHEN, CHINA |
|---|---|
| Productivity: | 100 PCS/Month |
| Supply Ability: | 1200 PCS/Year |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB |
| Certificate: | CE, ROHS,ISO |
| HS Code: | 8536300000 |
| Transportation: | Ocean,Air |
| Port: | SHENZHEN |
This 12V Cell Discharge Tester is Multi-Function Digital Capacity Tester, current in 1A ~ 20A adjustable, The discharging data displayed in digital panel will be switched between "voltage", "current" and "time", switch a state one time, digital table display the value of the corresponding data. There are two operation modes of normal discharge and deep discharge. In normal discharge mode, when the battery voltage drops to 10.50V, the instrument automatically stops discharging. In deep discharge mode, when the battery voltage drops to 2.00V, the instrument automatically stops discharging, without manual duty and automatically store the discharging time. According to the calculation formula: Capacity(Ah)=Discharge Current Value(A)* Time(m)/60 can be used to calculate the actual battery's capacity ("C" in the formula represents the capacity in amperes, "I" represents the discharge current in amperes, "T" represents the discharge time in minutes)
In the battery repair system and battery maintenance process, the battery discharge capacity value is the most important criterion to judge whether the batteries have been repaired or not. By discharging the batteries before repairing and discharging the batteries after repairing, the rate of capacity increase is calculated. This Cell Digital Capacity Discharge device is developed aim at this main applications.
APPLICATIONS
It is suitable for detecting discharge capacity of lead-acid batteries with cell 12V/36Ah to 12V/300Ah. Widely used in communications (such as telecommunications, China Unicom, mobile, CNC, CTT, etc.), power, finance, national defense, transportation and other sectors and sectors of the reserve power system, battery discharge capacity testing. The utility model can accurately detect the actual capacity and discharge characteristics of each single cell, so as to conveniently re-configure the batteries.
TECHNICAL PARAMETERS
- Synchronously Test Battery Qty: 1 PCS Cells
- Total Discharge Cycle time: Base on cell capacity
- Input Voltage: AC198~240V/50~60Hz
- Discharge Current Range: 1~20A(Adjust precision 0.1A)
- Discharge Termination Volt: 10.5V(Adjust precision 0.01V)
- Deep Discharge Termination Volt: 2.0V
- Maxium Power: 0.02kW
THE SKETCH MAP OF CONNECTION METHODS
Warranty:2 Years,Detailed information you can see from Production Manuel Introductions
