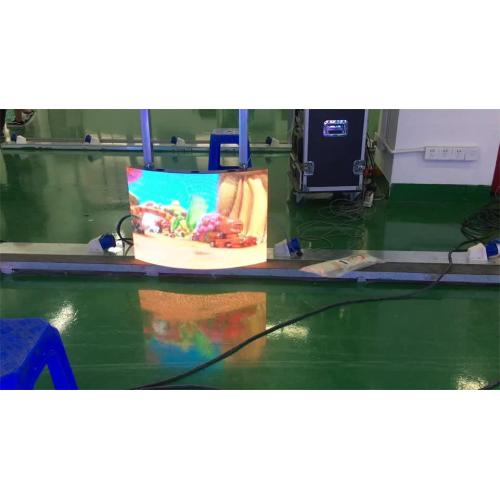

Indoor Full Color Soft LED Module Curved Screen
Your message must be between 20 to 2000 characters
Contact Now
|
Item
|
Parameter
|
|
Pixel Pitch
|
3mm
|
|
Pixel Resolution
|
111111dots/㎡
|
|
Module Resolution
|
W80 X H40 pixel
|
|
PCB Material
|
0.6mm flexible PCB
|
|
Operation Voltage
|
DC5V±10%
|
|
Max Power Con.
|
around 25W(typical)
|
|
Power Interface
|
VH4
|
|
Signal Interfac
|
HUB75D(IDC16)
|
|
Max Module Current
|
around 5.1A(typical)
|
|
Refresh rate
|
1920Hz
|
Features
1-Soft silicone frame with patents.
2-Shenzhen Meiyad is the first factory which make indoor flexible P3 led panel.
3-Higher resolution compared with P4 flexible.
4-Nationstar smd1515 led lamp, Gold line or Copper line.
5-Ultra wide viewing angle: horizontal and vertical viewing angle (both 140°), obtain good display effects at different viewing angle.
1. Strong cylinder, soft mask (patent)
2. Eliminate the short circuit, and the"caterpillar phenomenon"of LED display
3. Eliminate interference phenomenon of high contrast
4. Support chromaticity and brightness calibration
5. Apply ultra-long-life and power supply, whose efficency is about 90%
6. standard computer interface, easy maintenance, running more stable
7. Built-in air switch, inrush current protector, more security
Shenzhen Joy LED Display Co., Ltd. is a LED electronic display and LED lighting application products. It is invested by three senior LED industry professionals in China. It integrates R&D, production, sales, engineering, and after-sales services. High-tech companies, adhering to the unique advantages in the field of LED display and control, the company has fullyintroduced the ISO9000 series quality management system, the production process in strict accordance with the requirements of RoHS and CE directives pay attention to every job details in the manufacturing process management Lean management, strive for perfection, is a medium-sized enterprise producing high-tech electronic display products.
