Small Pixel Flexible Led Display Module
Your message must be between 20 to 2000 characters
Contact NowFeatures of Joy LED P4 Indoor Flexible LED Display
- The third revolution, add silicone frame + mask. Embedded magnet, reduce stitching gap. Soft, thin, strong magnets column, patent soft mask.
- High Flexibility, can be any designed forrolled, bend and swing according to customers` needs.
- Super Thin and Light, every flexible led module is weight of 800g.
-
Easy to Splice, Install and Maintain
- No cabinet, drastically deducting the screen weight. We can design any shape of structure as you need.
- Wide application, can be used in so many fields and occasions ,especially in all kinds of irregular buildings.
Technical Parameters of P4 Flexible LED Display Screen
| Pixel Pitch | 4mm | Pixel Density | 62500 pixels/m² |
| Pixels Per Panel | 64×32 Dots | Module Size | W 256mm×H 128mm |
| Weight | 0.1 kg/piece | Drive mode | 16-bit constant current drive |
| Scan Mode | 1/16S | LED Type | SMD |
| LED Configuration | 1Red,1Green,1Blue | Brightness | 1000cd/m² |
| Area | 0.0328 m² | Recommended Viewing Distance | ≥4m |
| Environment | Indoor | Operating Temperature | -20℃~+60℃ |
| Storage Temperature | -40℃~+80℃ | Gap Between Modules | Seamless |
| Horizontal Viewing Angle | +/-120° | Vertical Viewing Angle | +/-120° |
| Video Frame Rate | 50/60 Hz | Rate Refresh | ≥1920 Hz |
| Color Temperature | 9000±500K | Input Power <Max> | 25W/ panel |
| LED Life Time | ≥100,000 Hours | Acoustic Noise | Fanless operation |

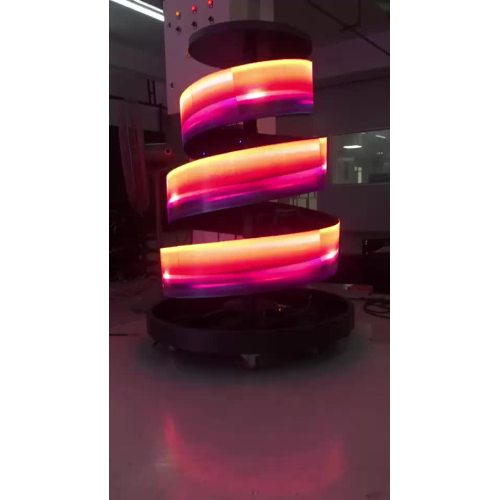

Some Cases of Flexible LED Display Screen
Packaging of Flexible LED Display Screen
Our products are widely used in indoor and outdoor commercial meida, sports venues, stage performances, special-shape creativity, etc. We also provide LED display integrated solutions. With the development of technology and manufacture workmanship, we have made many classical cases in the international market.
