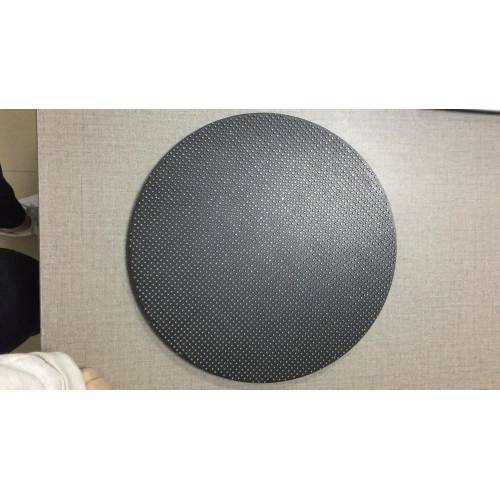

Round Led Display Module Customized round Shape
Your message must be between 20 to 2000 characters
Contact Now
|
Specification
|
P4
|
||
|
Pixel Pitch
|
4mm
|
||
|
Module Resolution
|
64*64
|
||
|
Pixel Density
|
62500 dots/㎡
|
||
|
Scan Mode
|
1/16
|
||
|
Refresh Rate
|
1920HZ
|
||
|
Driving IC
|
MBI5124
|
||
|
Grey Level
|
14BITS
|
||
|
Module Size
|
256*256mm
|
||
|
Brightness Intensity
|
1200-1500cd/㎡
|
||
|
Best View Distance
|
4-40m
|
||
|
Life Span
|
500.000H
|
||
|
Working Temperature
|
-20- +60℃
|
||
|
Working Humidity
|
10%-95%RH
|
||
|
Warranty
|
2 Years
|
|
|

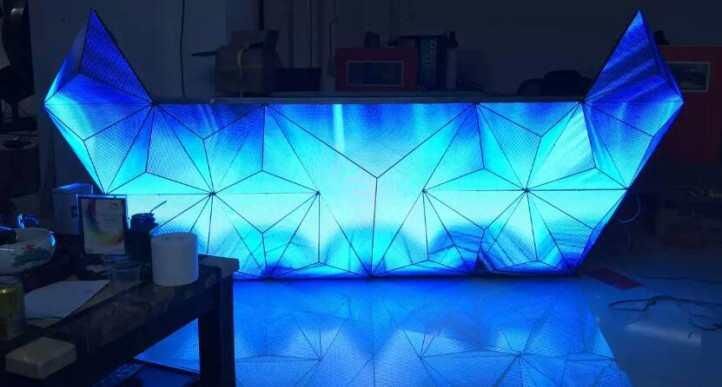

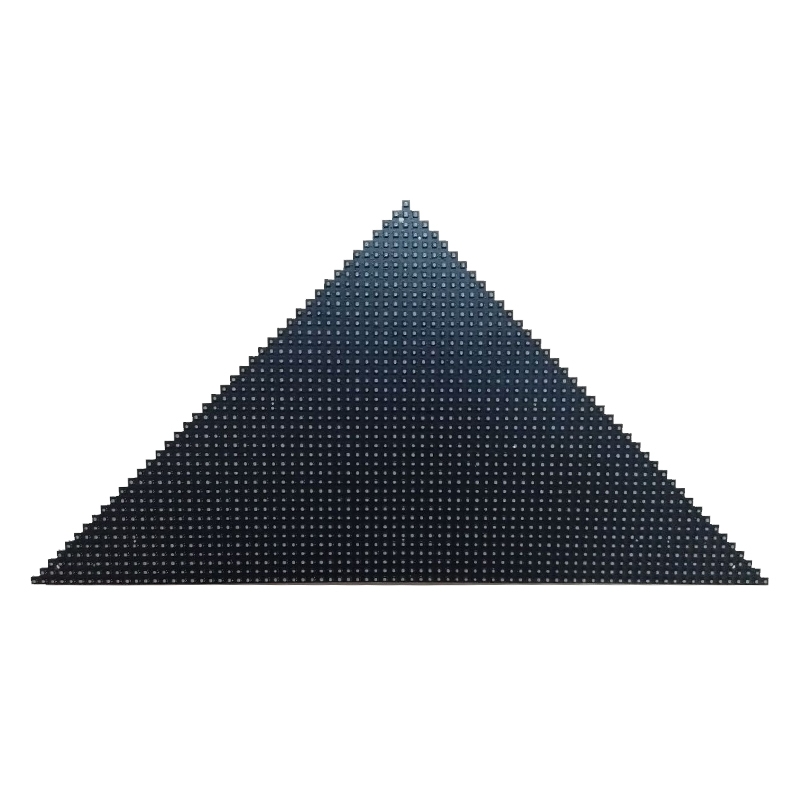

Triangle Modules
Triangle modules many are used for special design, applied to DJ Stage, Amusement Park, Science and Technology Museum, etc.

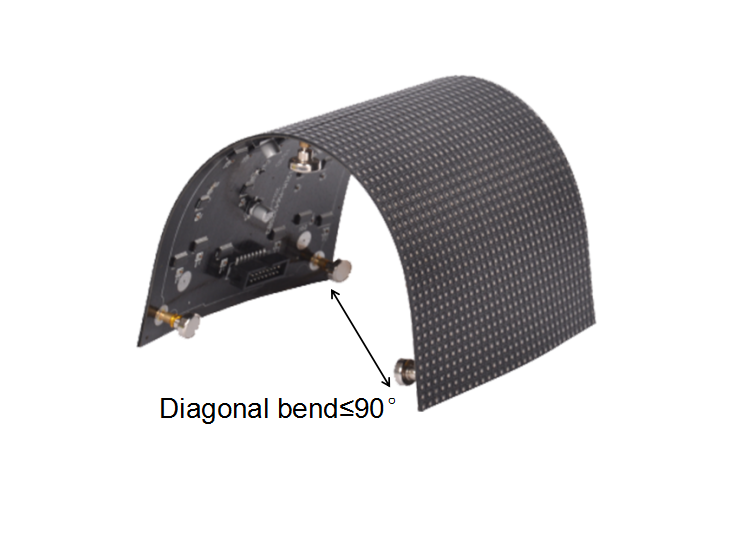

Flexible Modules
Flexible modules for any design, Newest P2.5, P4 with silicone frame.
Round Shape design, Leptospira design, wave design, etc. It is very hot on LED CHINA 2017 in Shanghai.
Why Choose Us?
- Specialized in Led Display Module for 9 Years
- Have 3 professional Factories: Hubei province, Shenzhen, Guangxi province
- Have 400.000 sqm manufacturing base, more than 1.200 employees, 50 LED encapsulation lines, 40 DIP lines, 10 SMD lines.
- SONY Mounter equipment , Universal brand automatic DIP machine
- 100% QC inspection before Shipment
- With CE, UL, FCC, ROHS, CCC, ISO9001 certification , assure high quality
