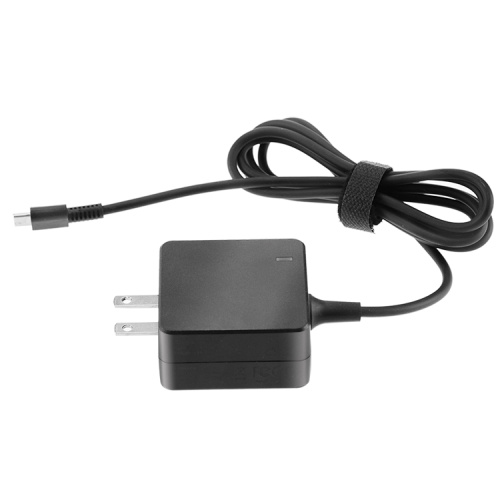

Samsung 30W Wall Adapter USB-C PD Laptop Charger

                                                       Samsung 30W Wall Adapter USB-C PD Laptop Charger

The plug-in power adapter is the power adapter that the body can be directly inserted into the plug-in board. The desktop power adapter is the power adapter that the body needs to be placed on the desktop. The difference between the desktop power adapter and the plug-in power adapter is that the desktop power adapter needs AC line to connect with the electric supply.

Products feature:

The Samsung Fast Charge laptop Charger plugs into any standard wall outlet via the included AC interchangeable plugs;The Cable Matters 30W USB-C Wall Charger with Power Delivery is an essential companion for charging the latest smartphone and notebooks with USB-C or Thunderbolt 3. This convenient travel charger can power and charge a notebook up to 30 watts with USB-C power delivery.

USB-C Mini Charging Station

Charge your device anywhere there is an electrical outlet. Use your existing USB-C charging cable to re-charge your laptop or smartphone. Intelligent device detection provides a safe USB charger with protection from overcharging your device and no vampire power draw when not in use.

30w usb-c fast charging wall charger ,use fast charge technology tp charge your compatible device's battery from 0 to 50% in about 30 minutes.Charge other usb-c devices at up to a 15v 2a speed.

specifications

Model No. YSA014

AC Input

Nominal Input Voltage  AC 100V~240V

Input Voltage Range AC 95V~265V

Input Frequency 50/60Hz

DC Output

Output with PD 15V2A/9V3A/5V3A

Output Power 30W

DC Connector  type-C USB

Line Regulation 2%

Load Regulation 5%

Ripple Noise 100 Mvp-p

Efficiency >85%

Output Cable Standard 0.5mm2 Pure Copper

Compatible type c cable length 1.5m

Environment

Operating Temperature 0°C ~40°C

Operating Humidity  5%~95%RH

Storage Temperature  -20°C ~85°C

Storage Humidity  5%~95%RH

Protection

Over Load Protection

Short Circuit Protection

Over Current Protection

Over Temperature Protection

Certificates CE, ROHS, REACH, FCC, ERP, CB, GS, TUV, UL, CUL, CCC,PSE

Dimensions

Adapter Size 7.2*7.2*2.7cm

Adapter Weight(with EU or US plug) 169G

Brown box size  19*13*4.7CM

Brown box weight 40G

PCS/CTN 50PCS

Outer Carton Size 48.5*32*40CM

Outer Carton Weight 860G

GW/CTN  13535G

Spare parts :1X adapter,1Xtype c cable,1xcolor box

Package

Inner Box  :each adapter into white color box, then with 2m type c cable into brown box,50pcs in one carton

Outer Carton  :Normally neutral standard carton or customized requirement

Warranty

Guarantee  30 days

Warranty 2 years

Terms and Conditions

MOQ  100PCS for mixed order

Payment Terms T/T, L/C, western union

Delivery Time :3-5 days

Manufacturing Process

1. Set-Up→2. Hand Insertion→3. Wave Soldering→4. Touch-Up→5. V/I→6. ICT→7. INT→8. Apply Glue→9. Q/A→10. Entering Stock→11. Assembly→12. Power On Test→13. Hi-Pot Test→14. Burn-In→15. Hi-Pot Test→16. All Fun Test→17. Packing→18. OQC→19. Shipping

Test Procedures

1.No-load output voltage test→2.input power load test→3.No-load output ripple test→4.Full load open test→5.Full load output voltage test→6.Full load output ripple test→7.Full load input power test→8.Half load output voltage test→9.Half load output ripple test→10.Over load test→11.Over current protection test →12.Short circuit protection test (above test is under both 110V and 230V.)→13.High voltage test→14. burn-in test→15.Turn on delay time test→16.Rise time test→17.Hold time test→18.Overshoot test

Shipping details:

♦ FedEx/DHL/UPS/TNT for samples, Door-to-Door;

♦ By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;

♦ Customers specifying freight forwarders or negotiable shipping methods;

♦ Delivery Time: 1-3 days for samples; 5-15 days for batch goods.

Company details:

♦Shenzhen Yidashun Technology Co., Ltd is a professional 12 years manufacturer dedicated to the R&D , manufacture and sales of laptop adapter , wall mount adapter , universal laptop adapter ,desktop adapter, AC DC adapter, switch power supply for led/ cctv/camera , AC/DC power cable,usb charger and so on .

♦ 100% burn-in test before deliver for 2-3 hours ,and the defective Rate is  0.3%-0.5% .

♦ All our high quality metal case power supply with over load , short circuit  protection

♦ Flexible and fast delivery, we can customize and develop new items according to customer's require !!!

Production Ability:

 We own 6 automatic production line,our daily output is about 5000~8000pcs,our monthly output is 200,000~300,000pcs,

we usually have big quantity

PCB in stock which can short delivery time for you!

Professional test:

 We have a series of professional test from raw material~unfinished products~finished

products to control the quality seriously, each adapter make 100% check before delivery out.
