30w type c adapter for Samsung

USD7.69

≥50 Piece/Pieces

Payment Type:: L/C, T/T, Paypal, Money Gram, Western Union

Incoterm:: FOB, CFR, CIF, EXW

Min. Order:: 50 Piece/Pieces

Min. Order:: 50 Piece/Pieces

Delivery Time:: 5 Days

Transportation:: Ocean, Air

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000pcs per month
Supply Ability:	10000000pcs per month
Payment Type:	L/C,T/T,Paypal,Money Gram,Western Union
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	CE&ROHS
HS Code:	8504401300
Transportation:	Ocean,Air
Port:	Shenzhen

Product Description

30w type c adapter for Samsung

Generally speaking, the true no-load voltage of ordinary replacement ac adapter may not be completely consistent with the nominal voltage, because the characteristics of electronic components cannot be completely consistent, so there is a certain error, the smaller the error, the higher the consistency requirements for electronic components The cost of production is higher, so the price is more expensive.

Both have the same nominal voltage and different output currents. Can they be used on the same laptop?

The laptop power supply voltage is the same, the output current is different, can it be used on the same notebook. The basic principle is that a power supply with a large nominal current can replace a power supply with a small nominal current. Some people may think this way, thinking that a laptop ac adapter with a large nominal current will burn the notebook because the current is high. In fact, the current depends on the load under the same voltage. When the notebook is under high-load operation, the current is larger. When the notebook enters standby, the current is smaller. The computer charger with a large nominal current has sufficient current margin. On the contrary, it is no problem to use a 56w replacement ac adapter instead of 72w, because the design of the power adapter usually has a certain margin, and the load power should be less than the power supply, so this replacement is feasible in general use. However, the remaining power supply margin is very small. Once you have connected a lot of peripherals, such as two USB hard drives, and then the CPU runs at full speed, there is a base, and an optical drive reads the disk at full speed. Charging the battery is probably dangerous. Therefore, it is best not to replace high-current power supplies with low-current ac power adapter.

Product Description :

Specifications
Model No.	YSA014
AC Input
Nominal Input Voltage	AC 100V~240V
Input Voltage Range	AC 95V~265V
Input Frequency	50/60Hz
DC Output
Output Voltage& current	15V2A/9V3A/5V3A
Output Power	30W
DC Connector Size	NEW TYPE C
Line Regulation	2%
Load Regulation	5%
Ripple Noise	180 Mvp-p
Efficiency	>85%
Output Cable Standard	0.5mm2, OD 4.0mm Pure Copper
Output Cable Length	2m normally or customized requirement
Environment
Operating Temperature	0°C ~40°C
Operating Humidity	5%~95%RH
Storage Temperature	-20°C ~85°C
Storage Humidity	5%~95%RH
Protection
Over Load Protection	Short Circuit Protection
Over Current Protection	Over Temperature Protection
Certificates
CE, FCC,ROHS
Dimensions
Adapter Size	656529 MM(not including the AC plug)
Ac plug length	40mm
Adapter Weight	160G
Inner Box Size	19134.7 CM
Inner Box Weight	40G
PCS/CTN	50PCS
Outer Carton Size	48.53240 CM
Outer Carton Weight	860G
GW/CTN	10860G
Package
Inner Box	Normally neutral brown box or customized requirement
Outer Carton	Normally neutral standard carton or customized requirement
Warranty
Guarantee	30 days
Warranty	2 years
Terms and Conditions
MOQ	100PCS for mixed order
Payment Terms	T/T, L/C, PayPal, western union
Delivery Time	3-5 days
Manufacturing Process
1. Set-Up→2. Hand Insertion→3. Wave Soldering→4. Touch-Up→5. V/I→6. ICT→7. INT→8. Apply Glue→9. Q/A→10. Entering Stock→11. Assembly→12. Power On Test→13. Hi-Pot Test→14. Burn-In→15. Hi-Pot Test→16. All Fun Test→17. Packing→18. OQC→19. Shipping
Test Procedures
1.No-load output voltage test→2.input power load test→3.No-load output ripple test→4.Full load open test→5.Full load output voltage test→6.Full load output ripple test→7.Full load input power test→8.Half load output voltage test→9.Half load output ripple test→10.Over load test→11.Over current protection test →12.Short circuit protection test (above test is under both 110V and 230V.)→13.High voltage test→14. burn-in test→15.Turn on delay time test→16.Rise time test→17.Hold time test→18.Overshoot test

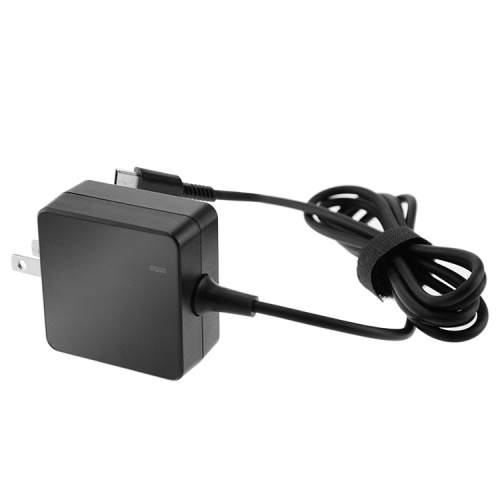

Product Picture:

PD charger for samsung 30W PD charger

Company Information:

Professional test to control quality:

We have a series of professional test from raw material~unfinished products~finished products to control the quality seriously, each adapter make 100% check before delivery out.

Test For The Charger

Certification:

Our Exhibition in all the world:

Our Services:

Good quality & low wholesale prices
•Concentrating on the R&D, production and sales of laptop adapters for almost all computer brands for over 10 years, with CE/ROHS/FCC/ERP.
•High quality laptop adapters with OCP/OVP/SCP/OTP protection
•Offering the original manufacturer prices.
•Strict QC & perfect after-sales services
•Controlling every process from the procurement of raw materials, assembling, test, improvement, till the finished products.
•1 year warranty, regular after-sales tracking, professional related technology instruction.

•We can support you with customized logo and package.
