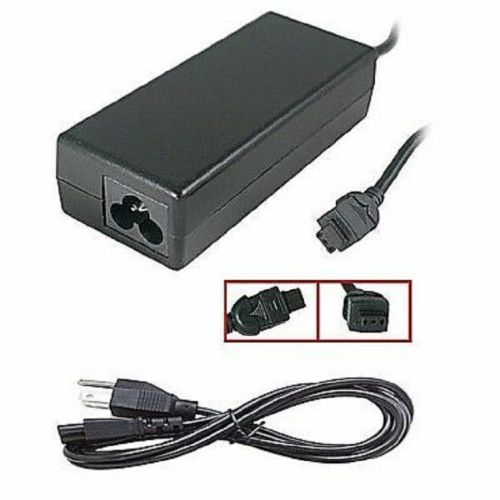

19V 2.64A 3pin laptop ac adapter for dell

19V 2.64A 3pin laptop ac adapter for dell

USD4.68

50-999 Piece/Pieces
USD4.18

≥1000 Piece/Pieces

Payment Type:: L/C, T/T, Paypal, Money Gram, Western Union

Incoterm:: FOB, CIF, EXW

Min. Order:: 50 Piece/Pieces

Min. Order:: 50 Piece/Pieces

Delivery Time:: 3-5 Days

Transportation:: Ocean, Land, Air, DHL/FEDEX/UPS

Port:: GUAGNZHOU, SHEKOU, SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China,Guangdong
Productivity:	1000000pcs per month
Supply Ability:	10000000pcs per month
Payment Type:	L/C,T/T,Paypal,Money Gram,Western Union
Incoterm:	FOB,CIF,EXW
Certificate:	CE&ROHS
Transportation:	Ocean,Land,Air,DHL/FEDEX/UPS
Port:	GUAGNZHOU,SHEKOU,SHENZHEN

Product Description

19V 2.64A 3pin laptop ac adapter for dell

Dell Inspiron Charger

Composition, technical index, characteristic index and parameters of regulated laptop power supply
The low ac adapter stabilized voltage laptop accessories in electronic circuit consists of four parts: laptop adapter transformer, rectifying circuit, filtering circuit and stabilized voltage circuit. Technical index and characteristic index of DC stabilized voltage computer charger : input voltage, output voltage, output current, output voltage range
The definition of voltage stabilizing coefficient laptop power adapter is the ratio of the relative change of output voltage and input voltage of the voltage stabilizing circuit when the load is fixed. The temperature coefficient st reflects the influence of temperature change on the output voltage; the output resistance ro reflects the influence of load current change on the output voltage; the ripple voltage refers to the effective value of the notebook adapter component at the output end of the voltage stabilizing circuit, which represents the small fluctuation of the output voltage.

description

Specifications
Model No.	YDH305
AC Input
Nominal Input Voltage	AC 100V~240V
Input Voltage Range	AC 95V~265V
Input Frequency	50/60Hz
DC Output
Output Voltage	19V
Output Current	2.64A
Output Power	50W
DC Connector Size	3 pin
Line Regulation	2%
Load Regulation	5%
Ripple Noise	180 Mvp-p
Efficiency	>85%
Output Cable Standard	0.5mm2 Pure Copper
Output Cable Length	1.5m normally or customized requirement
Environment
Operating Temperature	0°C ~40°C
Operating Humidity	5%~95%RH
Storage Temperature	-20°C ~85°C
Storage Humidity	5%~95%RH
Protection
Over Load Protection	Short Circuit Protection
Over Current Protection	Over Temperature Protection
Certificates
CE, ROHS, REACH, FCC, ERP, CB, GS, TUV, UL, CUL, CCC,PSE
Dimensions
Adapter Size	8.53.42.7CM
Adapter Weight	160G
Inner Box Size	19134.7CM
Inner Box Weight	40G
PCS/CTN	50PCS
Outer Carton Size	48.53240CM
Outer Carton Weight	860G
GW/CTN	10860G
Package
Inner Box	Normally neutral brown box or customized requirement
Outer Carton	Normally neutral standard carton or customized requirement
Warranty
Guarantee	30 days
Warranty	2 years
Terms and Conditions
MOQ	100PCS for mixed order
Payment Terms	T/T, L/C, PayPal, western union
Delivery Time	3-5 days
Manufacturing Process
1. Set-Up→2. Hand Insertion→3. Wave Soldering→4. Touch-Up→5. V/I→6. ICT→7. INT→8. Apply Glue→9. Q/A→10. Entering Stock→11. Assembly→12. Power On Test→13. Hi-Pot Test→14. Burn-In→15. Hi-Pot Test→16. All Fun Test→17. Packing→18. OQC→19. Shipping
Test Procedures
1.No-load output voltage test→2.input power load test→3.No-load output ripple test→4.Full load open test→5.Full load output voltage test→6.Full load output ripple test→7.Full load input power test→8.Half load output voltage test→9.Half load output ripple test→10.Over load test→11.Over current protection test →12.Short circuit protection test (above test is under both 110V and 230V.)→13.High voltage test→14. burn-in test→15.Turn on delay time test→16.Rise time test→17.Hold time test→18.Overshoot test

show

packing procedure fair

Our Services:

Good quality & low wholesale prices
•Concentrating on the R&D, production and sales of laptop adapters for almost all computer brands for over 10 years, with CE/ROHS/FCC/ERP.
•High quality notebook adapter with OCP/OVP/SCP/OTP protection
•Offering the original manufacturer prices.
•Strict QC & perfect after-sales services
•Controlling every process from the procurement of raw materials, assembling, test, improvement, till the finished products.
•1 year warranty, regular after-sales tracking, professional related technology instruction.

•We can support you with customized logo and package.
