High Power PD Charger 90W for Dell

$13.85

≥50 Piece/Pieces

Min. Order:: 50 Piece/Pieces

Min. Order:: 50 Piece/Pieces

Transportation:: Ocean, Air

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000pcs per month
Supply Ability:	10000000pcs per month
Payment Type:	L/C,T/T,Paypal
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	CE&ROHS
HS Code:	8504401300
Transportation:	Ocean,Air
Port:	Shenzhen

Product Description

High Power USB C PD Charger 90W for Dell

Dell Computer Charger

Mobile notebook adapter have their own compatible computer charger , so they must be used together. Pay attention to the size and shape of the laptop accessories charging connector. When using the mobile smart notebook power adapter , do not intersect or use it with other computer or notebook charger , it is easy to cause the instability of the laptop power supply current, causing some damage or loss to the laptop power adapter

laptop adapter Product Description :

Specifications
Model No.	YD319
AC Input
Nominal Input Voltage	AC 100V~240V
Input Voltage Range	AC 95V~265V
Input Frequency	50/60Hz
DC Output
Output Voltage& current	20V 4.5A/15V 3A/9V 3A/5V 3A
Output Power	90W
DC Connector Size	TYPE-C
Line Regulation	2%
Load Regulation	5%
Ripple Noise	100 Mvp-p
Efficiency	>85%
Output Cable Standard	0.5mm2, OD 4.0mm, Pure Copper
Output Cable Length	1.5m normally or customized requirement
Environment
Operating Temperature	0°C ~40°C
Operating Humidity	5%~95%RH
Storage Temperature	-20°C ~85°C
Storage Humidity	5%~95%RH
Protection
Over Load Protection	Short Circuit Protection
Over Current Protection	Over Temperature Protection
Certificates
CE, ROHS, REACH, FCC, ERP, CB, GS, TUV, UL, CUL, CCC,PSE
Dimensions
Adapter Size	1306622mm
Adapter Weight	300G
Inner Box Size	19134.7 CM
Inner Box Weight	40G
PCS/CTN	50PCS
Outer Carton Size	48.53240 CM
Outer Carton Weight	860G
GW/CTN	16KG
Package
Inner Box	Normally neutral brown box or customized requirement
Outer Carton	Normally neutral standard carton or customized requirement
Warranty
Guarantee	30 days
Warranty	2 years
Terms and Conditions
MOQ	100PCS for mixed order
Payment Terms	T/T, L/C, PayPal, western union
Delivery Time	3-5 days
Manufacturing Process
1. Set-Up→2. Hand Insertion→3. Wave Soldering→4. Touch-Up→5. V/I→6. ICT→7. INT→8. Apply Glue→9. Q/A→10. Entering Stock→11. Assembly→12. Power On Test→13. Hi-Pot Test→14. Burn-In→15. Hi-Pot Test→16. All Fun Test→17. Packing→18. OQC→19. Shipping
Test Procedures
1.No-load output voltage test→2.input power load test→3.No-load output ripple test→4.Full load open test→5.Full load output voltage test→6.Full load output ripple test→7.Full load input power test→8.Half load output voltage test→9.Half load output ripple test→10.Over load test→11.Over current protection test →12.Short circuit protection test (above test is under both 110V and 230V.)→13.High voltage test→14. burn-in test→15.Turn on delay time test→16.Rise time test→17.Hold time test→18.Overshoot test

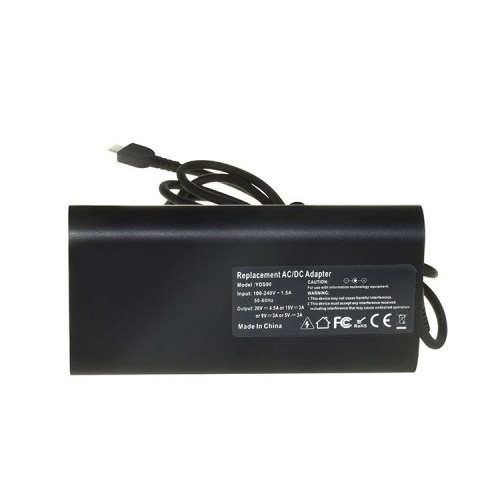

Product Picture:

90W Type-c charger (3)

90W Type-c charger (4)

Company Information:

Professional test to control quality:

We have a series of professional test from raw material~unfinished products~finished products to control the quality seriously, each computer charger make 100% check before delivery out.

Test For The Charger

Certification:

Our Exhibition in all the world:

Our Services:

Good quality & low wholesale prices
•Concentrating on the R&D, production and sales of laptop adapters for almost all computer brands for over 10 years, with CE/ROHS/FCC/ERP.
•High quality laptop adapters with OCP/OVP/SCP/OTP protection
•Offering the original manufacturer prices.
•Strict QC & perfect after-sales services
•Controlling every process from the procurement of raw materials, assembling, test, improvement, till the finished products.
•1 year warranty, regular after-sales tracking, professional related technology instruction.

•We can support you with customized logo and package.
