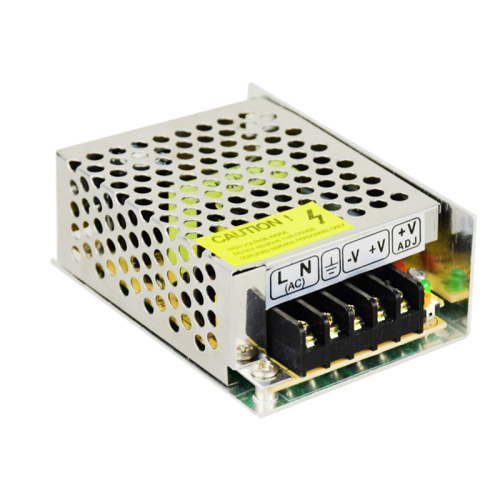

12V 2A Metal Case Switching Power Supply

12V 2A Metal Case Switching Power Supply

USD1.99

100-999 Piece/Pieces
USD1.82

≥1000 Piece/Pieces

Payment Type:: T/T, Paypal, Money Gram, Western Union

Incoterm:: FOB, CFR, CIF

Min. Order:: 100 Piece/Pieces

Min. Order:: 100 Piece/Pieces

Delivery Time:: 3-5 Days

Transportation:: Ocean, Air, FEDEX DHL UPS

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	20000PCS/day
Supply Ability:	20000PCS/day
Payment Type:	T/T,Paypal,Money Gram,Western Union
Incoterm:	FOB,CFR,CIF
Certificate:	CE, ROHS, REACH, FCC, ERP, CB, GS, TUV, UL, CUL, CCC,PSE
Transportation:	Ocean,Air,FEDEX DHL UPS
Port:	SHENZHEN

Product Description

12V 2A Metal Case Switching Power Supply

About the switching power supply:

Switching power supply. Its power device works in the switching state, and the energy of switch mode power supply is temporarily stored through the inductor coil during voltage adjustment, so that Switch power supply 12v's loss is small, the efficiency is high, and the requirements for heat dissipation are low, but CCTV power adapteralso has transformers and energy storage inductors. For higher requirements, materials with low loss and high permeability must be used.Its transformer is a small word. The total efficiency is 80% to 98%. The efficiency of the switching power supply is high but the volume of power supply is small. However, compared with the linear power supply, its ripple and voltage and current regulation rate are discounted.

The specification of Switching power supply

description

12V 2A Technical Specification
Model No.	YDS24
Input	Voltage	AC 100-240V Worldwide
	Vibration Input Voltage Range	AC 95-265V
	Frequency	50-60Hz
Output	Voltage	DC 12V
	Current	2A
	Power	24W
	Typical Efficiency	73%
	Adjustable Range of Voltage	DC 12V-12.5V
	Max. Ripple & Noise	250mV
Protection	Over Load	105-115% of Rated Output Power
Protection	Short Circuit	Protection Type: Auto Recovery
Electric Strength	High-pot test	3KV AC
Environment	Working temperature and humidity	-10°C~+60°C,20~90%RH
	Store temperature and humidity	20°C~+85°C,10~95%RH
	MTBF	>200K hrs.@25°C(MIL-HDBK-217F)
Warranty	1 year
Feature	Dimension(LWH)	855832mm
	Weight	103.5g
	Inner box size	906238mm
	Inner box weight	12G
	PCS/CTN	100 PCS/CTN
	CTN size	43.33520cm
	GW/CTN	13.7kg
Safety & EMC	Safety Standards	EN55015/EN61000-3-2/EN61000-3-3

metal case 12v 2a (2)

More switching power switching power supply

We can produce 5V 12V 24V 36V 48V metal case switching power supply, pls let us know which one you are really want, and we will give you our suggestion and recommendation.
