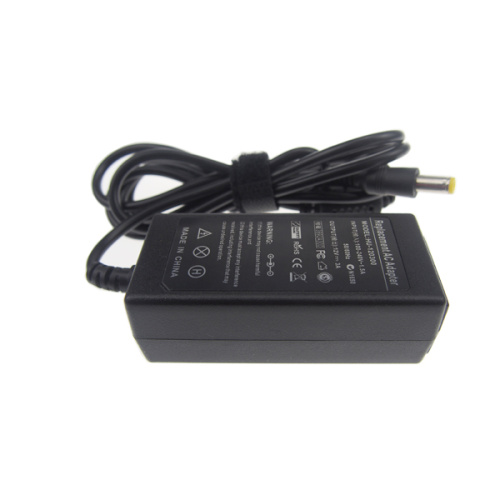

12v 36w power adapter with 5.5*2.5mm

12v 36w power adapter with 5.5*2.5mm

12v 36w desktop adapter for led light, lcd, printer.The power adapter chip TB6812 patented technology EMI not only has excellent noise attenuation characteristics, but also has powerful functions, and some can also be hot swapped, which can greatly save the space of the printed circuit board (PCB) and is suitable for ac power supply and electronic equipment. The EMI performance of the power adapter is also related to the stability of the product and affects the user experience. Mainly manifested in: Inadequate EMI design of the product may cause internal crosstalk and affect the stability of the product; the ability to resist external interference is poor, and the work is difficult to stabilize.

Production specificates:

AC Input: AC 100V~240V(AC 95V~265V), 50/60Hz

DC Output:12V 3A 36W

DC Tip:5.5*2.5mm

Efficiency:>85%

Ripple Noise: below 150Mvp-p

DC cable standard:0.5mm2 Pure Copper

DC cable length:1.2m or can be customized

Operating Temperature:0°C ~40°C

Operating Humidity:5%~95%RH

Storage Temperature:-20°C ~85°C

Storage Humidity:5%~95%RH

Warranty:2 years

Certificate:CE, ROHS, REACH, FCC, ERP, CB, GS, TUV, UL, PSE

MOQ:100pcs

Company information:

Shenzhen Yidashun Technology Co.Ltd, founded in 2007, is a professional manufacturer dedicated to producing and sale of laptop adapter, universal laptop adapter, 12v 24V desktop adapter for LED/CCTV, AC DC power adapter, wall adapter, metal case switching power supply for LED/CCTV, USB charger, car charger,usb wall socket,extension socket , power cable,usb cable etc electronical accessories.

Our products range including replacement ac adapter for all brands such as apple ,dell, hp/Compaq, Microsoft ,IBM/Lenovo, Sony, Toshiba, Fujitsu, Gateway, Liteon, Delta, NEC, LS, LG and so on.

Professional test:
For all our laptop ac adapter, we have a series of professional test from raw material~unfinished and products~finished products to control the quality seriously, each adapter make 100% checking and testing before delivery out.

Package information:

Safe packing, brown box or color box packing can be customized

Inner box size: 19*13*4.7 cm

PCS/CTN: 50PCS

Carton Size: 48.5 x 32 x 40cm

With many years of market experience, we have gained the trust of a wide audience. All our laptop adapters have passed CE FCC ROHS UL CUL ETL CB certificates with full 1 year and 2 years warranty.

Welcome to visit our factory and the worldwide exhibition in USA, HK, Germany, Brazil, Russia etc
