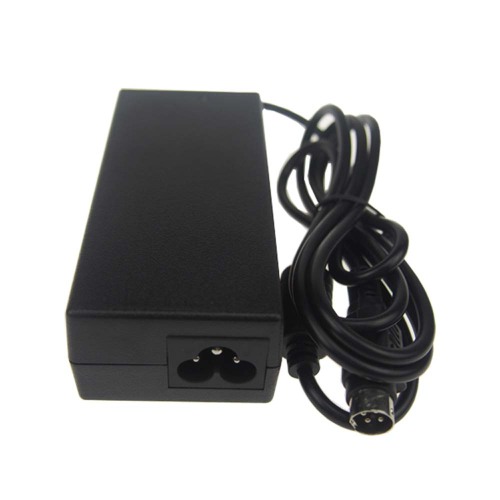

12V 3.75A 4PIN 45W power supply LCD

12V 3.75A 4PIN 45W power supply LCD

100% brand new and high quality,all our 45w power supply products are CE / FCC / RoHS certified,pls do not worry.Under normal operating conditions of ac dc power supply, the duty cycle of the power MOSFET decreases linearly with the increase in the current of the control pin, that is, the pin has the previous 3 terminals and becomes the current 7 pins, which is the TO-220-7C kind. The power adapter efficiency can also be adjusted higher. It will not be very high at about 85%. It depends on your output. Similar to TO225Y, TOP255YN is also an integrated switching power supply chip, which can convert the input current of the control pin into the duty cycle of the output of the high-voltage power MOSFET switch. For the set output voltage, a smaller transformer core and / or a higher transformer primary inductance can be used. Reduce TOPSwitch power consumption while avoiding saturation of the transformer core during startup and output transients.

Production specificates:

AC Input: AC 100V~240V(AC 95V~265V), 50/60Hz

DC Output:12V 3.75A 45W

DC Tip:4pin

Efficiency:>85%

Ripple Noise: below 150Mvp-p

DC cable standard:0.5mm2 Pure Copper

DC cable length:1.2m or can be customized

Operating Temperature:0°C ~40°C

Operating Humidity:5%~95%RH

Storage Temperature:-20°C ~85°C

Storage Humidity:5%~95%RH

Warranty:2 years

Certificate:CE, ROHS, REACH, FCC, ERP, CB, GS, TUV,  CUL, PSE

MOQ:100pcs

Company information:

Shenzhen Yidashun Technology Co.Ltd, founded in 2007, is a professional manufacturer dedicated to producing and sale of laptop adapter, universal laptop adapter, 12v 24V desktop adapter for LED/CCTV, AC DC power adapter, wall adapter, metal case switching power supply for LED/CCTV, USB charger, car charger,usb wall socket,extension socket , power cable,usb cable etc electronical accessories.

Our products range including replacement ac adapter for all brands such as apple ,dell, hp/Compaq, Microsoft ,IBM/Lenovo, Sony, Toshiba, Fujitsu, Gateway, Liteon, Delta, NEC, LS, LG and so on.

Professional test:
For all our laptop ac adapter, we have a series of professional test from raw material~unfinished and products~finished products to control the quality seriously, each adapter make 100% checking and testing before delivery out.

Package information:

Safe packing, brown box or color box packing can be customized

Inner box size: 19*13*4.7 cm

PCS/CTN: 50PCS

Carton Size: 48.5 x 32 x 40cm

With many years of market experience, we have gained the trust of a wide audience. All our laptop adapters have passed CE FCC ROHS UL CUL ETL CB certificates with full 1 year and 2 years warranty.

Welcome to visit our factory and the worldwide exhibition in USA, HK, Germany, Brazil, Russia etc
