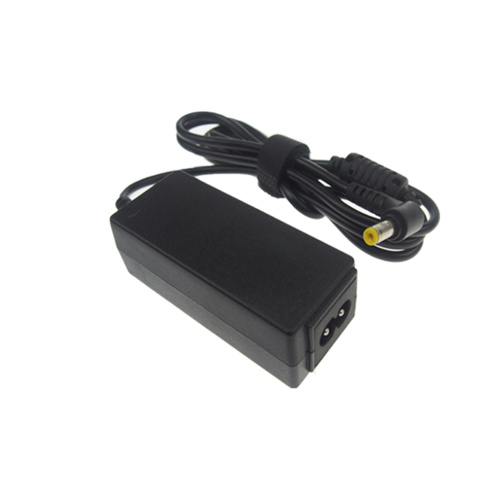

12V 2A 5.5*2.5MM power supply charger for LCD/LED/CCTV

12V 2A 5.5*2.5MM power supply charger for LCD/LED/CCTV

Yidashun's 12V 2A Power Supply charger,  is a common 12V series power charger, 2, Normaly it is used fr LED strip lights. Smart device surge protection.

Note:The power adapter cannot charge the battery. The power adapter voltage is regulated and has an overcurrent protection circuit. Even when the voltages match, at the beginning of charging, because the battery is discharged, the voltage is very low, and the charging current will be large, so that the power supply is protected and charging is interrupted. When the battery is half charged, the voltage of the adapter will not rise again, and stops at the voltage regulated by the adapter, so that the battery cannot be fully charged. For example, the 12 volt power adapter will stop at 12 volts, and the 12 volt battery is fully charged, and the voltage will generally reach about 14.5 volts. If you want to charge the battery, choose a special charger that meets the battery charging requirements.

Production specificates:

AC Input: AC 100V~240V(AC 95V~265V), 50/60Hz

DC Output:12V 2A 24W

DC Tip:5.5*2.5mm

Efficiency:>85%

Ripple Noise: below 150Mvp-p

DC cable standard:0.5mm2 Pure Copper

DC cable length:1.2m or can be customized

Operating Temperature:0°C ~40°C

Operating Humidity:5%~95%RH

Storage Temperature:-20°C ~85°C

Storage Humidity:5%~95%RH

Warranty:2 years

Certificate:CE, ROHS, REACH, FCC, ERP, CB, GS, TUV, UL, CUL, CCC,PSE

MOQ:100pcs

Company information:

Shenzhen Yidashun Technology Co.Ltd, founded in 2007, is a professional manufacturer dedicated to producing and sale of laptop adapter, universal laptop adapter, 12v 24V desktop adapter for LED/CCTV, AC DC power adapter, wall adapter, metal case switching power supply for LED/CCTV, USB charger, car charger,usb wall socket,extension socket , power cable,usb cable etc electronical accessories.

Our products range including replacement ac adapter for all brands such as apple ,dell, hp/Compaq, Microsoft ,IBM/Lenovo, Sony, Toshiba, Fujitsu, Gateway, Liteon, Delta, NEC, LS, LG and so on.

Professional test:
For all our laptop ac adapter, we have a series of professional test from raw material~unfinished and products~finished products to control the quality seriously, each adapter make 100% checking and testing before delivery out.

Package information:

Safe packing, brown box or color box packing can be customized

Inner box size: 19*13*4.7 cm

PCS/CTN: 50PCS

Carton Size: 48.5 x 32 x 40cm

With many years of market experience, we have gained the trust of a wide audience. All our laptop adapters have passed CE FCC ROHS UL CUL ETL CB certificates with full 1 year and 2 years warranty.

Welcome to visit our factory and the worldwide exhibition in USA, HK, Germany, Brazil, Russia etc
