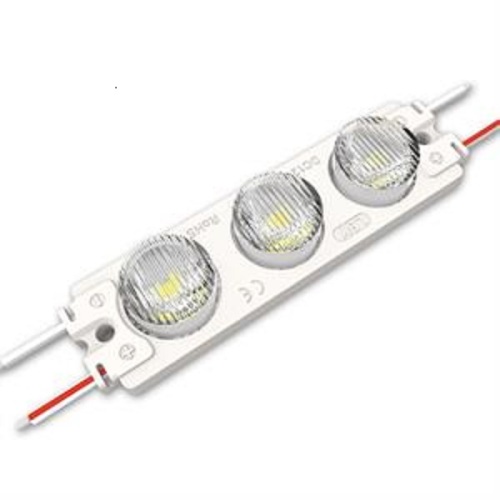

SMD3030 IP67 10*65° Edge Light Led Module

ZF03BB1 is sourced by high output SMD3030 with special beaming angle 10*65°,five years warranty,best for 8-20cm depth double-sided light box at airports, metros, banks, buildings and shopping malls,etc. Edge light led module is one of our six products and we are careful with the packing and arranged with special paking, 20pcs per layer 100pcs per carton to protect them from demage.

Features:

The ZF03BB1 is sourced by high output SMD3030.

99.99% gold thread, pure copper bracket coated with silver.

SDCM≤5each Bin.

Special lens design, 10*40°beaming angle with uniform illumination.

Overmoulded:anti-dusting, anti-moisture, waterproof, anti-shock

15pcs Max. in a series connection.

CE, ROHS and UL certified and 5-year warranty.

Application:

Best for 8-20 cm depth double-sided light box at airports, metros, banks, buildings and shopping malls, etc.

Parameters:

Packing:

Declaration:

Warranty: 5 years.

In order to ensure the safety, the broken wires needs to be replaced by the manufacturer or the service agent, or by the staff with the similar qualification.

The given data in the specification was based on the laboratory testing, there may be discrepancy found in the actual products.

The given drawings in the specification are only for reference, there may be discrepancy found in the actual products.

The products are subject to change without prior notification.
