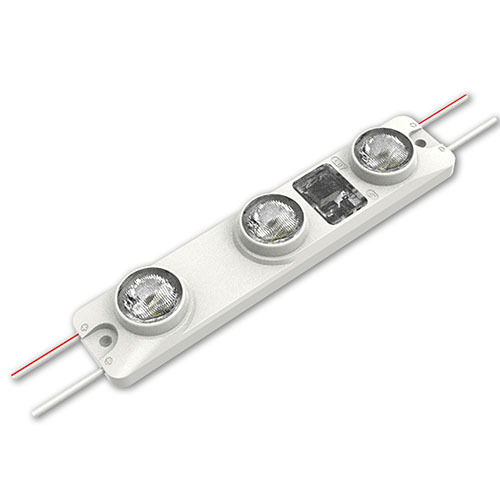

Injection LED module DC12V LG LED
- Payment Type:
- L/C, T/T, Western Union
- Incoterm:
- FOB, CIF
- Min. Order:
- 1000 Piece/Pieces
- Min. Order:
- 1000 Piece/Pieces
- Delivery Time:
- 10 Days
- Transportation:
- Ocean, Air
- Port:
- Shenzhen Shekou, Shenzhen Sungang, Shenzhen Futian
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China. |
|---|---|
| Productivity: | 8,000,000pieces |
| Payment Type: | L/C,T/T,Western Union |
| Incoterm: | FOB,CIF |
| HS Code: | 9405409000 |
| Transportation: | Ocean,Air |
| Port: | Shenzhen Shekou,Shenzhen Sungang,Shenzhen Futian |
780LM side light led module,special lens design 10*40 degree,best for 8-30cm depth double side light box,5 years warranty,10pcs max in a series connection,CE,RoHS and UL certified.
Application:
Best for 12-18 cm depth double-sided light box at airports, metros, banks, buildings and shopping malls, etc.
Parameters:
Features:
Sourced by high output LG LED, good color conformity and no spot. 99.99% gold thread, pure copper bracket coated with silver.
SDCM≤5 each BIN.
Special lens design, 10*40°beaming angle with even light.
Overmoulded: anti-dusting, anti-moisture, waterproof, anti-shock.
10 pcs Max. in a series connection.
CE, ROHS and UL certified.
Dimension:
Packing:
Instruction:
When installing the product, please switch off the power
Please use constant voltage power supply and leave 20% or more balance of its total power Make isolation and corrosion prevention on all wiring points and wire ends
The maximum series connection quantity for ZF03BB1 is 15 pcs , please do not exceed this number The products can be installed by screws, rivets as well as silicon gel, while please do not use Acidic or alkaline adhesive
The high power LEDs generates more heat, so please install the products on the surface of material with good heat dissipation such as metallic or aluminium panel
For single side light box, in order to get better and even lighting effect, you can put the products more closer to unilluminated back and attach white reflective poly sheet or sheet with similar function on the inner back
Declaration:
Warranty: 5 years.
In order to ensure the safety, the broken wires needs to be replaced by the manufacturer or the service agent, or by the staff with the similar qualification.
The given data in the specification was based on the laboratory testing, there may be discrepancy found in the actual products.
The given drawings in the specification are only for reference, there may be discrepancy found in the actual products.
The products are subject to change without prior notification.
