250lm 3SMD3030 lens edge light led module
- Payment Type:
- L/C, T/T, Western Union
- Incoterm:
- FOB, CFR, CIF, FCA
- Min. Order:
- 1000 Others
- Min. Order:
- 1000 Others
- Delivery Time:
- 10 Days
- Transportation:
- Ocean, Air
- Port:
- FOB Shenzhen Futian, FOB Shenzhen Shekou, FOB Shenzhen Sungang
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 8,000,000pcs/month |
| Supply Ability: | 1000000pcs |
| Payment Type: | L/C,T/T,Western Union |
| Incoterm: | FOB,CFR,CIF,FCA |
| Certificate: | ISO9001:2015 |
| HS Code: | 9405409000 |
| Transportation: | Ocean,Air |
| Port: | FOB Shenzhen Futian,FOB Shenzhen Shekou,FOB Shenzhen Sungang |

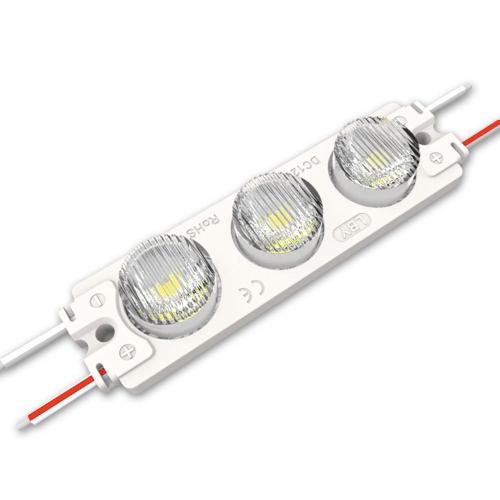

250lm 3SMD3030 lens edge light led module best for 8-20cm depth double sided lightbox,15pcs max in a series connection,sourced by SMD3030 led,5 years warranty.
Features:
The ZF03BB1 edge lighting LED module is sourced by high output SMD3030, good color conformity and no spot.
We use 99.99% gold thread, pure copper bracket coated with silver, the performace is perfect.
Special lens design, 10*65°beaming angle with even light.
Overmoulded: anti-dusting, anti-moisture, waterproof, anti-shock. 15 pcs Max. in a series connection.
We provide 5 year warranty for LED modules, and CE, ROHS and UL certified.
Best for 8-20cm depth double-side light box.
Specifications:
Part No.
Input Vol.
Dimensions(mm)
Lumen/lm
Power(W/PC)
LED Qty/pcs
CCT/K
LED Type
ZF03BB1
12V
74*20*9.8
250
2.5
3
6500
3030
Instruction:
When installing the product, please switch off the power
Please use constant voltage power supply and leave 20% or more balance of its total power Make isolation and corrosion prevention on all wiring points and wire ends
The maximum series connection quantity for ZF03BB1 is 15 pcs , please do not exceed this number The products can be installed by screws, rivets as well as silicon gel, while please do not use Acidic or alkaline adhesive
The high power LEDs generates more heat, so please install the products on the surface of material with good heat dissipation such as metallic or aluminium panel
For single side light box, in order to get better and even lighting effect, you can put the products more closer to unilluminated back and attach white reflective poly sheet or sheet with similar function on the inner back.
