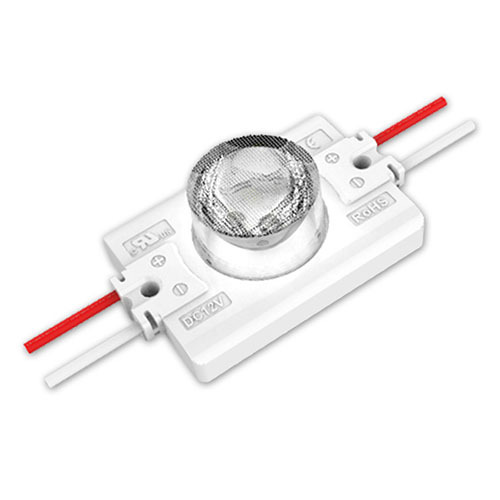

250LM edge lighting LED module 12V

Quick Details:

Part No.: ZX01BB2                     Voltage: 12V dc                     Power: 2.5W/pc

Beaming Angle: 15x45°              Luminous Flux(lm): 250lm       CCT: Pure White

CRI: 75                                    Driving Mathod: Inner Constant Current

Features:

a. Sourced by high output SMD3535, good color conformity and no spot.

b. 99.99% gold thread, pure copper bracket coated with silver.

c. SDCM≤5 each BIN.

d. Special lens design, 15*45°beaming angle with even light.

e. Overmoulded: anti-dusting, anti-moisture, waterproof, anti-shock.

f. 10 pcs Max. in a series connection.

g. CE, ROHS and UL certified.

Application:

Best for 15-30cm depth double-sided light box or 8-20 cm depth single-sided light box at airports, metros, banks, buildings and shopping malls, etc.

Packing:

Warnings:

Disassembling or modifying the product is forbidden.
Installation with power on is forbidden.
Any organic solvent chemical is forbidden.
Acidic or alkaline adhesive is forbidden when install, neutral glass cement could be used for installation purpose,
make it drying in open environment for four hours.
Isolation and corrosion prevention on all wiring points and wire ends.
Make sure the power wire is thick enough and ensure the voltage and connections are connected correctly before
power on.
This product should be used in a sign, do not expose it in opening site.
Installation, maintaining should be done by professional staff.
10 pcs in a serial connection maximum.
The power wire between power supply and module should be less than two meters to keep the same brightness
on all parts.
