OSRAM Back Light Led Module 4LED 2W
- Payment Type:
- T/T, Western Union
- Incoterm:
- FOB
- Min. Order:
- 2000 Piece/Pieces
- Min. Order:
- 2000 Piece/Pieces
- Delivery Time:
- 10 Days
- Transportation:
- Ocean, Air
- Port:
- Yantian, Shekou, Sungang
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen, China |
|---|---|
| Productivity: | 1000000pcs |
| Payment Type: | T/T,Western Union |
| Incoterm: | FOB |
| Certificate: | UL,ISO,CE |
| HS Code: | 9405409000 |
| Transportation: | Ocean,Air |
| Port: | Yantian,Shekou,Sungang |

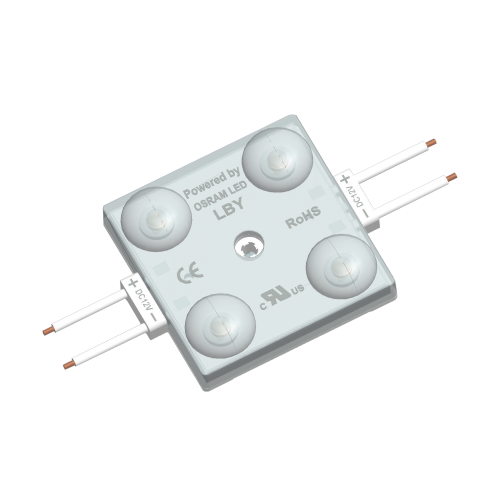

OSRAM 4LED 2W 170° LED Module, best for 6-15cm depth illuminate letter or light box.
Features
- Sourced by high output OSRAM LED, good color conformity and no spot.
- 99.99% gold thread, pure copper bracket coated with silver.
- Constant current driving technology guarantees stable performance of product.
- SDCM≤5 each BIN.
- Special lens design, 170°beaming angle with even light.
- Overmoulded: anti-dusting, anti-moisture, waterproof, anti-shock.
- 50 pcs Max.(constant voltage) in a series connection.
- CE, ROHS and UL certified.
Application
- Best for 6-15 cm depth illuminate letter or light box at airports,metros, banks, buildings and shopping malls, etc
Parameters
|
Items |
Parameters |
|
Part Number |
ZR04QB1 |
|
CCT(K) |
6500K |
|
Beaming Angle(°) |
170 |
|
CRI(Ra) |
≥80 |
|
Luminous Flux(lm) |
200 |
|
Voltage(V) |
DC12V |
|
Power(W) |
2 |
|
Driving Method |
Constant Voltage |
|
Dimension(mm) |
47.3*40.3*10.4 |
|
Weight(g) |
12 |
|
Working Tem.(℃) |
-25~+60 |
|
Storage Tem.(℃) |
-25~+70 |
|
Protection Grade |
IP68 |
Packing
Packing Specification
- Antistatic bag adopted Packing information
-
Packing information
|
Part Number |
ZR02QB1 |
|
Carton dimension(mm) |
490*450*220 |
|
Bags per carton |
10 |
|
Quantity per carton(pcs) |
1000 |
|
Net Weight(kg) |
13.5(1±10%) |
|
Gross Weight(kg) |
14.5(1±10%) |
- Due to the packing manner difference, please subject to the original products in case of discrepancy found between the picture and actual product.
- Disassembling or modifying the product is forbidden.
- Installation with power on is forbidden.
- Any organic solvent chemical is forbidden.
- Acidic or alkaline adhesive is forbidden when install, neutral glass cement could be used for installation purpose, make it drying in open environment for four hours.
- Isolation and corrosion prevention on all wiring points and wire ends.
- Make sure the power wire is thick enough and ensure the voltage and connections are connected correctly before power on.
- This product should be used in a sign, do not expose it in opening site.
- Installation, maintaining should be done by professional staff.
- 50 pcs in a serial connection maximum.
- The power wire between power supply and module should be less than two meters to keep the same brightness on all parts.
