4leds module for thin light box channel letters
- Payment Type:
- T/T, D/P, Western Union
- Incoterm:
- FOB, CFR, CIF, FCA
- Min. Order:
- 2000 Piece/Pieces
- Min. Order:
- 2000 Piece/Pieces
- Delivery Time:
- 10 Days
- Transportation:
- Ocean, Air
- Port:
- Yantian, Shekou, Yantian
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen, China |
|---|---|
| Productivity: | 1000000pcs |
| Payment Type: | T/T,D/P,Western Union |
| Incoterm: | FOB,CFR,CIF,FCA |
| Certificate: | UL,ISO,CE |
| HS Code: | 9405409000 |
| Transportation: | Ocean,Air |
| Port: | Yantian,Shekou,Yantian |
170 Degree backlit led module,high light efficiency 100LM/W backlit led module,all of color temperature is available,6-15cm depth illumination letter or light box solution,5 years warranty.
ZE04BA3 LED module features:

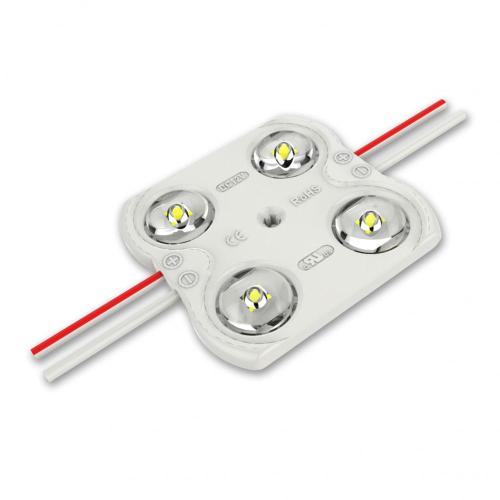

This ZE04BA3 LED module is powered by high output SMD2835, 4leds in one module, and dimension is 45*43*6.2mm.
170°beaming angle with even light.
20pcs per string, 1000pcs per carton.
Warranty is 5 years.
Application
- Best for 6-15cm depth illuminate letter or light box at airports,metros, banks, buildings and shopping malls, etc
Parameters
|
Items |
Parameters |
|
Part Number |
ZE04BA3 |
|
CCT(K) |
7000K |
|
Beaming Angle(°) |
170 |
|
CRI(Ra) |
≥75 |
|
Luminous Flux(lm) |
160 |
|
Voltage(V) |
DC12V |
|
Power(W) |
1.6 |
|
Driving Method |
Constant Voltage |
|
Dimension(mm) |
45*43*6.2 |
|
Weight(g) |
14.3 |
|
Working Tem.(℃) |
-25~+60 |
|
Storage Tem.(℃) |
-25~+70 |
|
Protection Grade |
IP68 |
Packing
Packing Specification
- Antistatic bag adopted Packing information
-
Packing information
|
Part Number |
ZE04BA3 |
|
Carton dimension(mm) |
490*450*220 |
|
Bags per carton |
10 |
|
Quantity per carton(pcs) |
1000 |
|
Net Weight(kg) |
12.9(1±10%) |
|
Gross Weight(kg) |
14.1(1±10%) |
- Due to the packing manner difference, please subject to the original products in case of discrepancy found between the picture and actual product.
- Disassembling or modifying the product is forbidden.
- Installation with power on is forbidden.
- Any organic solvent chemical is forbidden.
- Acidic or alkaline adhesive is forbidden when install, neutral glass cement could be used for installation purpose, make it drying in open environment for four hours.
- Isolation and corrosion prevention on all wiring points and wire ends.
- Make sure the power wire is thick enough and ensure the voltage and connections are connected correctly before power on.
- This product should be used in a sign, do not expose it in opening site.
- Installation, maintaining should be done by professional staff.
- 20 pcs in a serial connection maximum.
- The power wire between power supply and module should be less than two meters to keep the same brightness on all parts.
