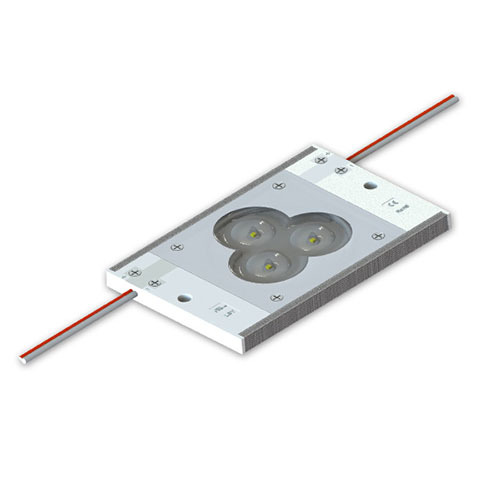

Seoul1919 600LM lens backlit led module

175 degree lens backlit led module,adopt with Seoul 1919 led,12pcs max in a series connection,5 years warrant,CE,RoHS and UL certified.

Features

• Adopting Seoul LED, 7W/PC, 600lm, dimension: 124*82*11mm.
• 12 pcs/string, constant current inside.
• 4pcs for one square meter.
• Beam angle: 170° beaming angle.  Anti-dusting, anti-moisture, waterproof, anti-shock.
• CE, ROHS and UL certified.
• 5-year warranty.

Application

• Best for 10-20cm depth single-sided light box at airports,metros, banks, buildings and shopping malls, etc.

ZW03WB1 module Parameters:

Packing information:

Due to the packing manner difference, please subject to the original products in case of discrepancy found between the picture and actual product.

Warnings:

Disassembling or modifying the product is forbidden.
Installation with power on is forbidden.
Any organic solvent chemical is forbidden.
Acidic or alkaline adhesive is forbidden when install, neutral glass cement could be used for installation purpose,
make it drying in open environment for four hours.
Isolation and corrosion prevention on all wiring points and wire ends.
Make sure the power wire is thick enough and ensure the voltage and connections are connected correctly before
power on.
This product should be used in a sign, do not expose it in opening site.
Installation, maintaining should be done by professional staff.
9 pcs in a serial connection maximum.
The power wire between power supply and module should be less than two meters to keep the same brightness
on all parts.
