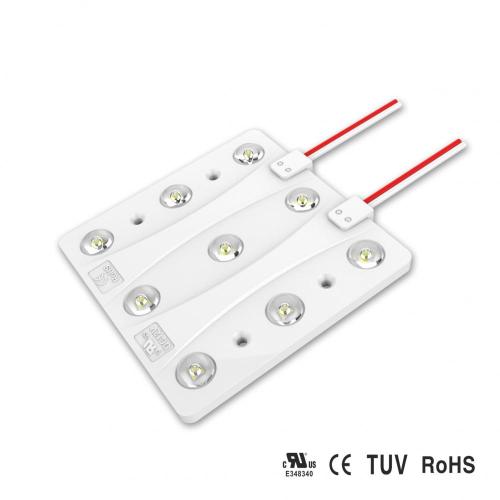

170 degree 9SMD3030 lens led module

9SMD3030 backlit lens led module,big angle 170 degree,only 5pcs/㎡,650LM with 7W,5 years warranty,best solution for 10-20cm depth signs at airport,metros and shopping mall.

ZF09 QB1 LED module Features

• Adopting SMD3030, which is high lighting efficiency.  7W/PC, 650lm. The dimension is: 94*94*7.8mm.
• 9 pcs/string.
• Only 5pcs per square meter.
• Beam angle: 170°beaming angle.  Anti-dusting, anti-moisture, waterproof, anti-shock.
• CE, ROHS and UL certified.
• 5-year warranty.

Application

• Best for 10-20cm depth single-sided light box at airports,metros, banks, buildings and shopping malls, etc.

ZF09QB1 module Parameters:

Packing information:

Due to the packing manner difference, please subject to the original products in case of discrepancy found between the picture and actual product.

Warnings:

Disassembling or modifying the product is forbidden.
Installation with power on is forbidden.
Any organic solvent chemical is forbidden.
Acidic or alkaline adhesive is forbidden when install, neutral glass cement could be used for installation purpose,
make it drying in open environment for four hours.
Isolation and corrosion prevention on all wiring points and wire ends.
Make sure the power wire is thick enough and ensure the voltage and connections are connected correctly before
power on.
This product should be used in a sign, do not expose it in opening site.
Installation, maintaining should be done by professional staff.
9 pcs in a serial connection maximum.
The power wire between power supply and module should be less than two meters to keep the same brightness
on all parts.
