High voltage 220V 2 backlit led module
- Payment Type:
- T/T, Western Union
- Incoterm:
- FOB, CFR
- Min. Order:
- 1000 Piece/Pieces
- Min. Order:
- 1000 Piece/Pieces
- Delivery Time:
- 10 Days
- Transportation:
- Ocean, Air
- Port:
- Yantian, Shekou, Sungang
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen, China |
|---|---|
| Productivity: | 1000000pcs |
| Payment Type: | T/T,Western Union |
| Incoterm: | FOB,CFR |
| Certificate: | UL,ISO,CE |
| HS Code: | 9405409000 |
| Transportation: | Ocean,Air |
| Port: | Yantian,Shekou,Sungang |

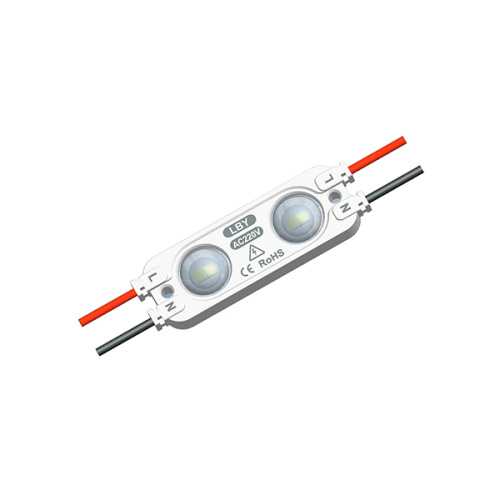

1.2W 220V high voltage backlit led module,100LM high light efficiency,best for 6-15cm depth illumination letter or single side lightbox,50pcs max in a series connection,5 years warranty,without led power supply and save energy cost.
Specificaton:
Items
Parameters
Part Number
ZE02QG1
CCT(K)
7000K
Beaming Angle(°)
160
CRI(Ra)
≥70
Luminous Flux(lm)
100
Voltage(V)
AC220V
Power(W)
1.2
Driving Method
Inner Constant Current
Dimension(mm)
60*19*8.16
Weight(g)
12
Working Tem.(℃)
-25~+60
Storage Tem.(℃)
-25~+70
Reference Sheme
Depth(mm)
Distance(mm)
Density(pcs/m²)
Illumination(lux)
Dz=60
Dx=60 Dy=60
105
3200-3400
Dz=80
Dx=60 Dy=60
105
2800-3200
Dz=100
Dx=60 Dy=60
105
2400-2800
Dz=120
Dx=60 Dy=60
105
2000-2400
Led module dimension
Package Information
Part Number
ZE02QG1
Carton Dimension(mm)
490*450*220
Trays per carton
20
Quantity per carton(pcs)
1000
Net Weight(kg)
9.0(1±10%)
Gross Weight(kg)
10.0(1±10%)
Declaration
Warranty: 3 years.
In order to ensure the safety, the broken wires need to be replaced by the manufacturer or the service agent,
or by the staff with the similar qualification.
The given data in the specification was based on the laboratory testing, there may be discrepancy found in the actual products.
The given drawings in the specification are only for reference, there may be discrepancy found in the actual products.
The products are subject to change without prior notification.
|
|
|
