1.32W 110LM 3SMD 5730 led module
- Payment Type:
- L/C, T/T, D/P, Western Union
- Incoterm:
- FOB, CIF
- Min. Order:
- 10000 Piece/Pieces
- Min. Order:
- 10000 Piece/Pieces
- Delivery Time:
- 10 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shekou, Yantian, Sungang
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000/day |
| Supply Ability: | 3000000/Month |
| Payment Type: | L/C,T/T,D/P,Western Union |
| Incoterm: | FOB,CIF |
| Certificate: | ISO9001 |
| HS Code: | 9405409000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shekou,Yantian,Sungang |

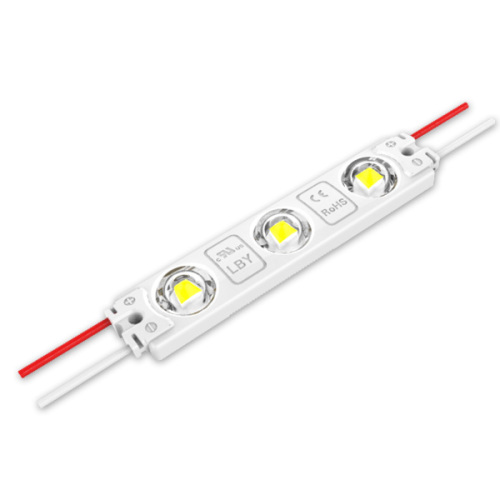

110LM 3SMD 5730 led module,high light efficiency best for 10-18cm depth illumination letter or lightbox,5 years warranty,20pcs max in a series connection,160 degree special lens design with uniform illumination.
1.32W constant current lens led module with high power 1.32W available for biger channel letter,20pcs max in a series connection.
1.32W constant current lens led module best for 8-18cm depth signs at airport,banks,building and shopping malls.
1.32W constant current lens led module specification.
|
Items |
Parameters |
|
Part Number |
ZL03QA4 |
|
CCT(K) |
7000K |
|
Beaming Angle(°) |
160 |
|
CRI(Ra) |
≥75 |
|
Luminous Flux(lm) |
110 |
|
Voltage(V) |
DC12V |
|
Power(W) |
1.32 |
|
Driving Method |
Constant Voltage |
|
Dimension(mm) |
85*17.5*8.4 |
|
Weight(g) |
11.5 |
|
Working Tem.(℃) |
-25~+60 |
|
Storage Tem.(℃) |
-25~+70 |
|
Protection Grade |
IP65 |
1.32W constant current lens led module reference scheme.
|
Depth(mm) |
Distance(mm) |
Density(pcs/m²) |
Illumination(lux) |
|
Dz=60 |
Dx=100 Dy=50 |
200 |
8000-9000 |
|
Dz=80 |
Dx=120 Dy=70 |
119 |
4800-500 |
|
Dz=100 |
Dx=140 Dy=90 |
79 |
2500-3000 |
|
Dz=120 |
Dx=160 Dy=110 |
57 |
1600-2000 |
|
Dz=150 |
Dx=190 Dy=130 |
40 |
1200-1500 |
1.32W constant current lens led module package information.
|
Part Number |
ZL03QA4 |
|
Carton dimension(mm) |
490*450*220 |
|
Bags per carton |
10 |
|
Quantity per carton(pcs) |
1000 |
|
Net Weight(kg) |
13.8(1±10%) |
|
Gross Weight(kg) |
15.1(1±10%) |
