0.72W 70LM 50pcs connection led module
- Payment Type:
- L/C, T/T, D/P, Western Union
- Incoterm:
- FOB, CFR, CIF, FCA
- Min. Order:
- 10000 Piece/Pieces
- Min. Order:
- 10000 Piece/Pieces
- Delivery Time:
- 10 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shekou, Yantian, Sungang
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000/day |
| Supply Ability: | 3000000/Month |
| Payment Type: | L/C,T/T,D/P,Western Union |
| Incoterm: | FOB,CFR,CIF,FCA |
| Certificate: | ISO9001 |
| HS Code: | 9405409000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shekou,Yantian,Sungang |

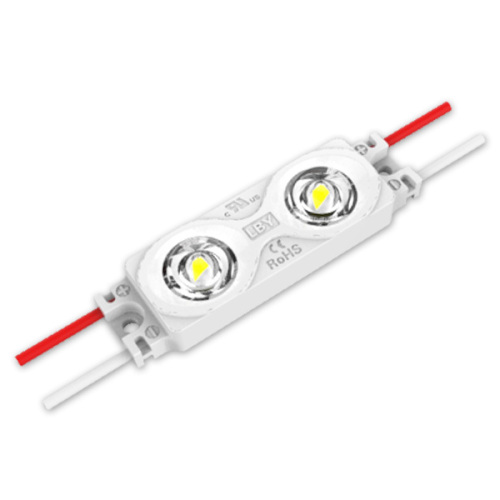

0.72W 70LM contant current led module,2SMD 2835 led module,50pcs max in a series connection,best for 8-15cm depth illumination letter or lightbox,5 years warranty.
ZE02QB7 LED module features:
This ZE02QB7 LED module is SMD 2835, constant curren, high light efficiency 97LM/W.
with better heat dissipation, 50pcs max in a series connection.
5 year warranty.
Best for 8-15cm depth signs at airport,banks,building and shopping malls.
Constant current lens led module parameters.
|
Items |
Parameters |
|
Part Number |
ZE02QB7 |
|
CCT(K) |
7000K |
|
Beaming Angle(°) |
160 |
|
CRI(Ra) |
≥75 |
|
Luminous Flux(lm) |
70 |
|
Voltage(V) |
DC12 |
|
Power(W) |
0.72 |
|
Driving Method |
Inner Constant Current |
|
Dimension(mm) |
52.4*15*9.2 |
|
Weight(g) |
9.57 |
|
Working Tem.(℃) |
-25~+60 |
|
Storage Tem.(℃) |
-25~+70 |
|
Protection Grade |
IP65 |
Constant current led module reference scheme.
|
Depth(mm) |
Distance(mm) |
Density(pcs/m²) |
Illumination(lux) |
|
Dz=60 |
Dx=80 Dy=60 |
208 |
4800-5500 |
|
Dz=80 |
Dx=100 Dy=80 |
125 |
2500-3000 |
|
Dz=100 |
Dx=120 Dy=95 |
88 |
1400-1800 |
|
Dz=120 |
Dx=140 Dy=95 |
75 |
1000-1300 |
|
Dz=150 |
Dx=160 Dy=95 |
66 |
600-900 |
Constant current led module package information.
|
Part Number |
ZE02QB7 |
|
Carton dimension(mm) |
490*450*220 |
|
Bags per carton |
15 |
|
Quantity per carton(pcs) |
1500 |
|
Net Weight(kg) |
14.30 (1±10%) |
|
Gross Weight(kg) |
15.96 (1±10%) |
