AC110V/220V LED module high voltage
- Payment Type:
- T/T, Western Union
- Incoterm:
- FOB, CFR
- Min. Order:
- 1000 Piece/Pieces
- Min. Order:
- 1000 Piece/Pieces
- Delivery Time:
- 10 Days
- Transportation:
- Ocean, Air
- Port:
- Yantian, Shekou, Sungang
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen, China |
|---|---|
| Productivity: | 1000000pcs |
| Payment Type: | T/T,Western Union |
| Incoterm: | FOB,CFR |
| Certificate: | UL,ISO,CE |
| HS Code: | 9405409000 |
| Transportation: | Ocean,Air |
| Port: | Yantian,Shekou,Sungang |

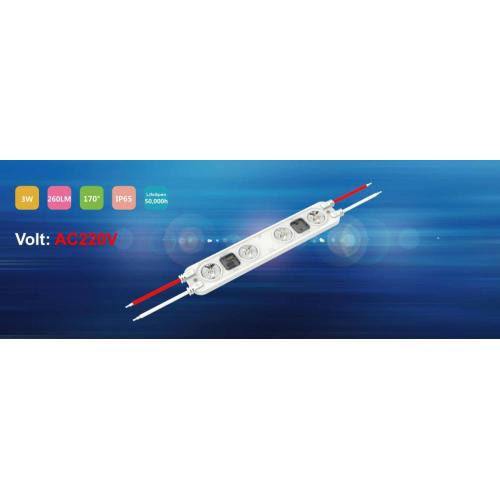

AC220V/110V backlit lens led module,3W power with 260 lumens, best for 8-15 cm depth single-sided light box at airports, metros, banks, buildings and shopping malls, etc
Parameters
|
Items |
Parameters |
|
Part Number |
ZX04QG1 |
|
CCT(K) |
7000K |
|
Beaming Angle(°) |
170 |
|
CRI(Ra) |
≥75 |
|
Luminous Flux(lm) |
260 |
|
Voltage(V) |
AC110V/220V |
|
Power(W) |
3 |
|
Driving Method |
Inner Constant Current |
|
Dimension(mm) |
157*28*8.8 |
|
Weight(g) |
51 |
|
Working Tem.(℃) |
-25~+60 |
|
Storage Tem.(℃) |
-25~+70 |
|
Protection Grade |
IP65 |
Package
|
Part Number |
ZX04QG1 |
|
Carton Dimension(mm) |
490*450*220 |
|
Trays per carton |
6 |
|
Quantity per carton(pcs) |
300 |
|
Net Weight(kg) |
20.4(1±10%) |
|
Gross Weight(kg) |
21.6(1±10%) |
