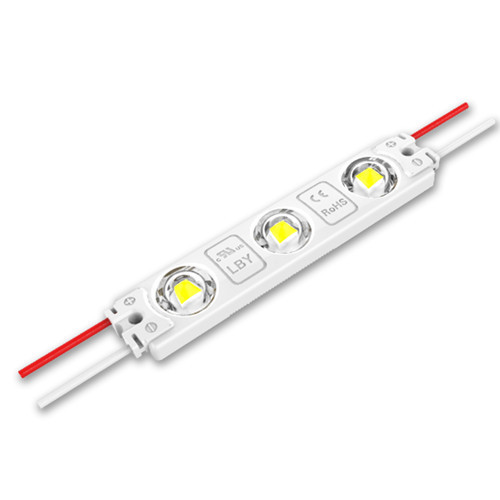

Samsung 3SMD lens backlit led module
- Payment Type:
- L/C, T/T, D/P, Western Union
- Incoterm:
- FOB, CIF
- Min. Order:
- 10000 Piece/Pieces
- Min. Order:
- 10000 Piece/Pieces
- Delivery Time:
- 10 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shekou, Yantian, Sungang
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000000pcs |
| Supply Ability: | 3000000/Month |
| Payment Type: | L/C,T/T,D/P,Western Union |
| Incoterm: | FOB,CIF |
| Certificate: | ISO9001:2015 |
| HS Code: | 9405409000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shekou,Yantian,Sungang |
1.32W samsung lens led module best for 8-15cm depth signs at airport,banks,shopping malls,20pcs max in a series connection,special lens design 160 degree with aluminum profile,5 years warranty.
ZE03QB7 LED module features:
This ZE03QB7 LED module is 1.1W/PC, high light efficiency 97LM/W.
50pcs max in a series connection.
CE, RoHS and UL approved.
Best for 8-15cm depth signs at airport,banks,building and shopping malls.
Constant current lens led module specification.
|
Items |
Parameters |
|
Part Number |
ZE03QB7 |
|
CCT(K) |
7000K |
|
Beaming Angle(°) |
160 |
|
CRI(Ra) |
≥75 |
|
Luminous Flux(lm) |
106 |
|
Voltage(V) |
DC12 |
|
Power(W) |
1.1 |
|
Driving Method |
Inner Constant Current |
|
Dimension(mm) |
74.4*15*9.2 |
|
Weight(g) |
9.57 |
|
Working Tem.(℃) |
-25~+60 |
|
Storage Tem.(℃) |
-25~+70 |
|
Protection Grade |
IP65 |
Constant Current Lens Led module reference scheme.
|
Depth(mm) |
Distance(mm) |
Density(pcs/m²) |
Illumination(lux) |
|
Dz=60 |
Dx=100 Dy=50 |
200 |
8800-9500 |
|
Dz=80 |
Dx=120 Dy=70 |
119 |
5000-5500 |
|
Dz=100 |
Dx=140 Dy=90 |
79 |
2500-2800 |
|
Dz=120 |
Dx=160 Dy=110 |
57 |
1600-2000 |
|
Dz=150 |
Dx=190 Dy=130 |
40 |
1200-1500 |
Constant Current Lens led module package information.
|
Part Number |
ZE03QB7 |
|
Carton dimension(mm) |
490*450*220 |
|
Bags per carton |
10 |
|
Quantity per carton(pcs) |
1000 |
|
Net Weight(kg) |
12.8 (1±10%) |
|
Gross Weight(kg) |
13.8 (1±10%) |
Constant Current Lens Led Module declaration.
Warranty: 5 years.
In order to ensure the safety, the broken wires need to be replaced by the manufacturer or the service agent,
or by the staff with the similar qualification.
The given data in the specification was based on the laboratory testing, there may be discrepancy found in the actual products.
The given drawings in the specification are only for reference, there may be discrepancy found in the actual products.
The products are subject to change without prior notification.
