1.5W aluminum profile white led module
- Payment Type:
- L/C, T/T, D/P, Western Union
- Incoterm:
- FOB, CIF
- Min. Order:
- 10000 Bag/Bags
- Min. Order:
- 10000 Bag/Bags
- Delivery Time:
- 10 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shekou, Sungang, Yantian
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000/day |
| Supply Ability: | 3000000/Month |
| Payment Type: | L/C,T/T,D/P,Western Union |
| Incoterm: | FOB,CIF |
| Certificate: | ISO9001 |
| HS Code: | 9405409000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shekou,Sungang,Yantian |

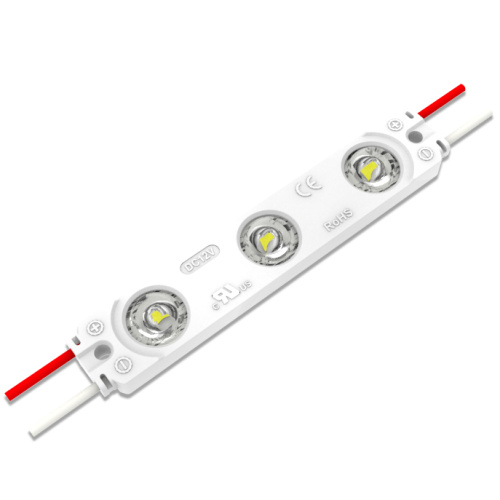

1.5W aluminum profile lens backlit led module best for 8-15cm depth illuminate letter or lightbox,160 degree lens led module with aluminum profile,all of color is available,5 years warranty.
1.5W led module specification.
|
Items |
Parameters |
|
Part Number |
ZE03QAD |
|
CCT(K) |
7000K |
|
Beaming Angle(°) |
160 |
|
CRI(Ra) |
≥75 |
|
Luminous Flux(lm) |
145 |
|
Voltage(V) |
DC12V |
|
Power(W) |
1.5 |
|
Driving Method |
Constant Voltage |
|
Dimension(mm) |
83*15*7.2 |
|
Weight(g) |
9.8 |
|
Working Tem.(℃) |
-25~+60 |
|
Storage Tem.(℃) |
-25~+70 |
|
|
|
Led module beaming angle
1.5W led module reference scheme
|
Depth(mm) |
Distance(mm) |
Density(pcs/m²) |
Illumination(lux) |
|
Dz=80 |
Dx=120 Dy=80 |
104 |
2000-2500 |
|
Dz=100 |
Dx=140 Dy=100 |
71 |
1300-1600 |
|
Dz=120 |
Dx=160 Dy=120 |
52 |
1000-1200 |
|
Dz=150 |
Dx=190 Dy=150 |
36 |
700-900 |
1.5W led module package specification
Part Number
ZE03QAD
Carton dimension(mm)
490*450*220
Bags per carton
10
Quantity per carton(pcs)
1000
Net Weight(kg)
10(1±10%)
Gross Weight(kg)
11(1±10%)
