3 and 1 led strip 5050 RGBW STRIP
- Payment Type:
- L/C, T/T, D/P, Western Union
- Incoterm:
- FOB, CFR, CIF
- Min. Order:
- 5000 Meter
- Min. Order:
- 5000 Meter
- Delivery Time:
- 10 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shekou, Sungang, Yangtian
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 5000M/day |
| Supply Ability: | 500000M/Month |
| Payment Type: | L/C,T/T,D/P,Western Union |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | ISO9001 |
| HS Code: | 9405409000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shekou,Sungang,Yangtian |

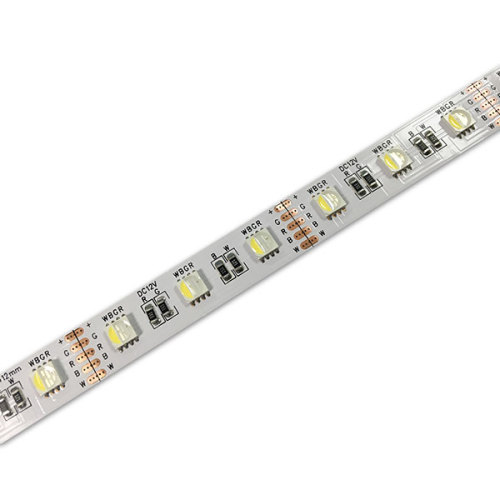

RGBW led strip,4 in 1 led chip,make light more colorful,sourced by high output 5050RGBW LED with good color conformity,99.99% gold thread, pure copper bracket coated with silver,USA Intematix phosphor with CRI＞80,SDCM≤5 each BIN,double layer rolled copper FPC. 3M 300LSE tape attached.CE, RoHS and UL certified.
City lighting, landscape lighting, commercial lighting and house contour lighting, etc.
Various CRI option from 75 to 95
Parameters.
Part Number
Dimensions(mm)
LED Type
LEDs/m
Voltage(V)
Power(W/m)
LM/LED
CCT/K
IP Grade
SH30LA1
5000*10
SMD 5050
30
DC12/24
6
23
6500
IP33
SH30JA1
5000*12
SMD 5050
30
DC12/24
6
23
6500
IP68
SH60LA1
5000*10
SMD 5050
60
DC12/24
12
23
6500
IP33
SH60JA1
5000*12
SMD 5050
60
DC12/24
12
23
6500
IP68
Package Information.
Part Number
Carton dimension(mm)
Bags per carton(pcs)
Quantity per carton(m)
Net Weight(kg)
Gross Weight(kg)
SH30LA1
495*450*215
90
450
6.5
9.2
SH30JA1
495*395*290
40
200
11.5
16.0
SH60LA1
495*450*215
90
450
7.2
9.8
SH60JA1
495*395*290
40
200
12
16.5
Warning.
Disassembling or modifying the product is forbidden. Installation with power on is forbidden.
Any organic solvent chemical is forbidden.
Isolation and corrosion prevention on all wiring points and wire ends.
Make sure the power wire is big enough and ensure the voltage and connection are all correct before power on. Installation, maintenance should be done by professional staff.
5M in a serial connection maximum for DC12/24V strips.
The power wire between power supply and LED strips should be less than two meters to keep the same brightness on all parts.
