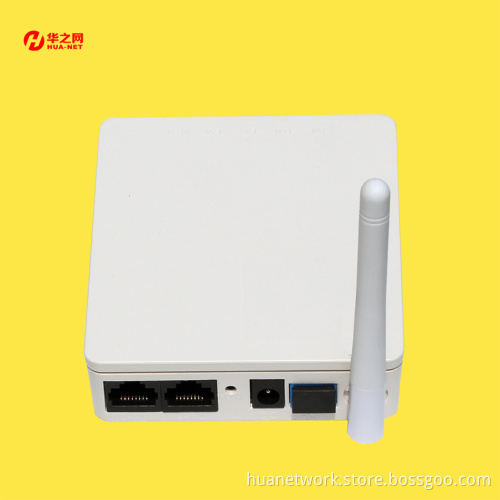

Contact NowHG921-W(HGU) is a GPON ONT terminal device ,which designed for fulfilling FTTx and triple play service demand of fixed network operator . This box isbased on the stable and mature Gigabit GPON technology, which has high ratio of performance to price, and the technology of Layer 2/3, high quality VoIP as well. It is highly reliable and easy to maintain, with guaranteed QoS for different service. It is fully compliant with technical regulations such as ITU-T G.984.x and technical requirement of GPON Equipment.
Technical items
Description
Upstream PON interface
1 GPON interface, SC single-mode/single-fibre, uplink 1.25Gbps, downlink 2.5Gbps
Wavelength
Tx 1310nm, Rx 1490nm
Optical output power
-1~+4dBm
Receiving sensitivity
<-28dBm
Farthest distance
20km between OLT and ONU
Optical interface
SC/APC connector
The user interface
2*GE LAN port ,1*2T2R WIFI(300M)
Ethernet function
Support IEEE802.1Q VLAN
Support speed rate inhibition of broadcast packet at ONU
IEEE 802.3X flow control
Support 16 multicast addresses at each LAN port
WIFI
Surport speed 300M ,Integrated 802.11b/g/n
Support WEP and WPA/WPA2 security protocols
CATV
Wavelength:1100-1600
Input optical power:-18dBm~0dBm
RF frequency: 47MHz-1000MHz
RF output lever :78dBuV(@-12~-2dBm@85MHz)
Support AGC
Management maintenance
Centralized OLT management based on OAM
WEB,CLI
Upgrade software remotely
Support to save configuration parameters when power down
Hardware information
Indicators
7 indicators, for status of power supply, PON port ,WIFI and LAN port.
DC power supply
+12V, external AC-DC power adaptor
Power consumption
≤6W
Operating condition
Operating temp: -5~+55℃
Storing condition
Storing temp: -30~+60℃
Dimension
185mm*130mm*30mm(length*width*height)
Net weight
0.35Kg
Operating humidity:10~90%(non-condensed)
Storing humidity:10~90%(non-condensed)
