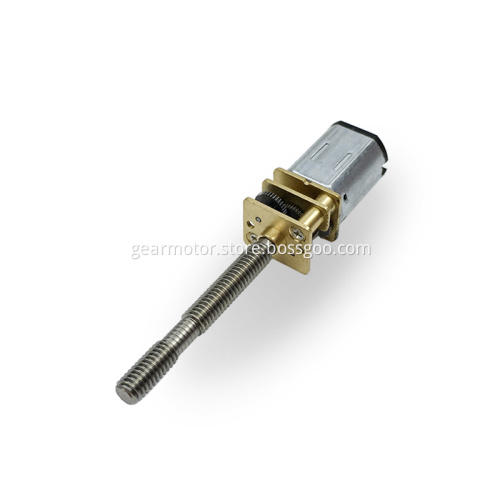

M4 threaded shaft N20 dc mini gear motor
- Min. Order:
- 500 Bag/Bags
- Min. Order:
- 500 Bag/Bags
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong Shenzhen |
|---|---|
| Productivity: | 20000pcs/day |
| Supply Ability: | 500000pcs/month |
| Payment Type: | T/T,Paypal |
| Incoterm: | FOB |
| Certificate: | RHOS ISO9001 |
| Transportation: | Ocean,Land,Air |
Dc gear motor used seriation, modular design, with a wide range of adaptability, and can combine a variety of other motor, gear bearing and layout plan, according to the actual need to select any speed and all kinds of layout.
This kind of gear motor customer mainly used in robot manipulator, the N20 Micro Motor can do M3 screw shaft, welcome to consultation.
M4 Threaded Shaft N20 Motor Speed range: 32~2500 RPM
Micro Dc Motor Overall dimensions: 12.0 x 10.0 x 25.0mm
We have a lot of different reduction ratio,Tie-in and different reduction ratio of the reducer, deceleration electric chance to output different rotational speed,In addition to change the speed reduction ratio can change the gear motor, you can change the speed of the Micro Electrical Motor.
Reduction ratio table :(The "L" is Gear length ,the unit is "mm")
|
Parameters of the model
|
VOL TAGE |
NO LOAD |
AT MAXIMUM |
STARTING |
|||||||
|
NOMINAL(V) |
SPEED |
CURRENT |
SPEEP |
CURRENT |
TOROUE |
OUTPUT |
TOROUE |
CURRENT |
|||
|
r/min |
A |
r/min |
A |
mN.m |
g.cm |
W |
mN.m |
kg.cm |
A |
||
|
N20AGB298-06350 |
6.0 |
33 |
0.020 |
25 |
0.062 |
24.01 |
245 |
0.06 |
98.0 |
1.0 |
0.19 |
|
N20ABG380-06350 |
12.0 |
52 |
0.035 |
47 |
0.080 |
44.1 |
450 |
0.22 |
225.4 |
2.3 |
0.36 |
|
N20AGB50-07250 |
7.2 |
340 |
0.045 |
280 |
0.110 |
9.8 |
100 |
0.29 |
49 |
0.5 |
0.45 |
|
N20AGB100-07280 |
4.5 |
95 |
0.030 |
85 |
0.050 |
5.98 |
60 |
0.05 |
29.4 |
0.3 |
0.25 |
|
N20AGB298-07280 |
6.0 |
40 |
0.030 |
35 |
0.080 |
29.4 |
300 |
0.11 |
147 |
1.5 |
0.35 |
|
N20AGB298-08230 |
6.0 |
52 |
0.040 |
45 |
0.120 |
39.2 |
400 |
0.18 |
176.4 |
1.8 |
0.52 |
|
N20AGB30-08195 |
6.0 |
620 |
0.045 |
540 |
0.100 |
3.92 |
40 |
0.22 |
19.6 |
0.2 |
0.58 |
|
N20AGB30-08220 |
6.0 |
580 |
0.050 |
480 |
0.130 |
5.88 |
60 |
0.30 |
29.4 |
0.3 |
0.55 |
|
N20AGB298-09168 |
6.0 |
70 |
0.050 |
56 |
0.200 |
47.04 |
480 |
0.27 |
235.2 |
2.4 |
0.80 |
|
N20AGB298-11115 |
5.0 |
50 |
0.070 |
45 |
0.170 |
34.3 |
350 |
0.16 |
176.4 |
1.8 |
0.85 |
|
N20AGB30-12105 |
6.0 |
1100 |
0.100 |
850 |
0.520 |
14.7 |
150 |
1.31 |
73.5 |
0.75 |
2.10 |
|
N20AGB50-12105 |
6.0 |
650 |
0.100 |
500 |
0.520 |
24.5 |
250 |
1.28 |
117.6 |
1.2 |
2.20 |
|
N20AGB298-13100 |
3.0 |
60 |
0.080 |
50 |
0.230 |
49 |
500 |
0.26 |
245 |
2.5 |
1.15 |
|
N20AGB50-1390 |
4.2 |
540 |
0.130 |
360 |
0.620 |
24.5 |
250 |
0.92 |
78.4 |
0.8 |
1.78 |
|
N20AGB50-1470 |
3.0 |
480 |
0.140 |
380 |
0.440 |
11.76 |
120 |
0.47 |
58.8 |
0.6 |
2.1 |
|
N20AGB100-09168 |
6.0 |
205 |
0.070 |
170 |
0.200 |
24.5 |
250 |
0.43 |
117.6 |
1.2 |
0.85 |
(The figure below is a customized special shaft,
If you have any need, we can customize different output shaft)
Our engineering department can provide special designs for different shaft length .
Packaging & Delivery:
Packaging Detail: standard export carton with inner foam in case of being damaged.
Delivery Detail: 20 days after receiving the order and advanced payment of 30%
Company production workshop:
We will test each motor, to ensure that customers receive qualified motor. Mechanization of production to realize full-automatic, further improve the production efficiency and stable product quality.
We have 20 years of experience in design research and development,Products in strict accordance with the standard production in Japan, "the quality first, customer supreme" is our management policy.
